Guides › 2×2 grid

2×2 grid

In the 2×2 grid, participants place points in a field with two axes — for example effort to the right, benefit upward. This captures assessments that a simple scale cannot show.

One point per person

Without elements, every person places exactly one point — for example to rate themselves on two axes. You label both ends of each axis; the quadrants can carry a name as well.

1
Create a new question
Step 1 of 14

Open Topics & Questions, select the topic on the left where the question belongs, and click + Question.

11Topics & Questions22Select topic33New question

Cockpit
1. Topics & Questions
2. Select topic
3. New question
2
Choose the question type
Step 2 of 14

The editor opens. Click the Question type field and choose 2×2 grid (no solution).

112×2 grid (no solution)

Cockpit
1. 2×2 grid (no solution)
3

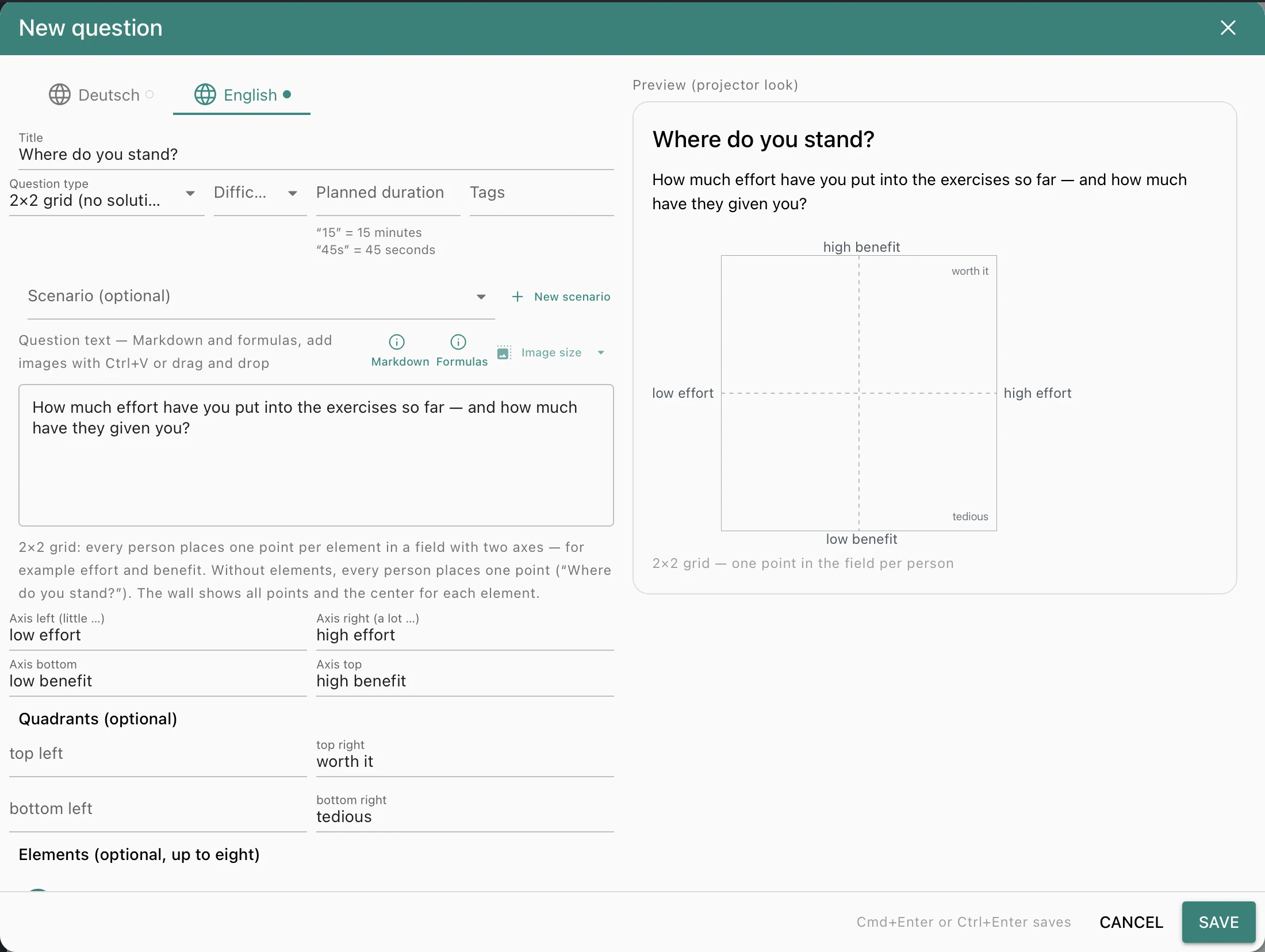

Label the axes and quadrants
Step 3 of 14

Choose the question type 2×2 grid (no solution). Fill in Axis left and Axis right (horizontal) as well as Axis bottom and Axis top (vertical). Under Quadrants the four fields can carry names, for example “worth it”. Without elements, every person places one point.

11Title22Question text33Horizontal axis44Vertical axis55Quadrants (optional)66Preview77Preview

Cockpit
1. Title
2. Question text
3. Horizontal axis
4. Vertical axis
5. Quadrants (optional)
6. Preview
7. Preview
4
Save
Step 4 of 14

Click Save (or press Cmd+Enter or Ctrl+Enter). The question is now in the topic and can be added to any playlist.

11Save

Cockpit
1. Save
5

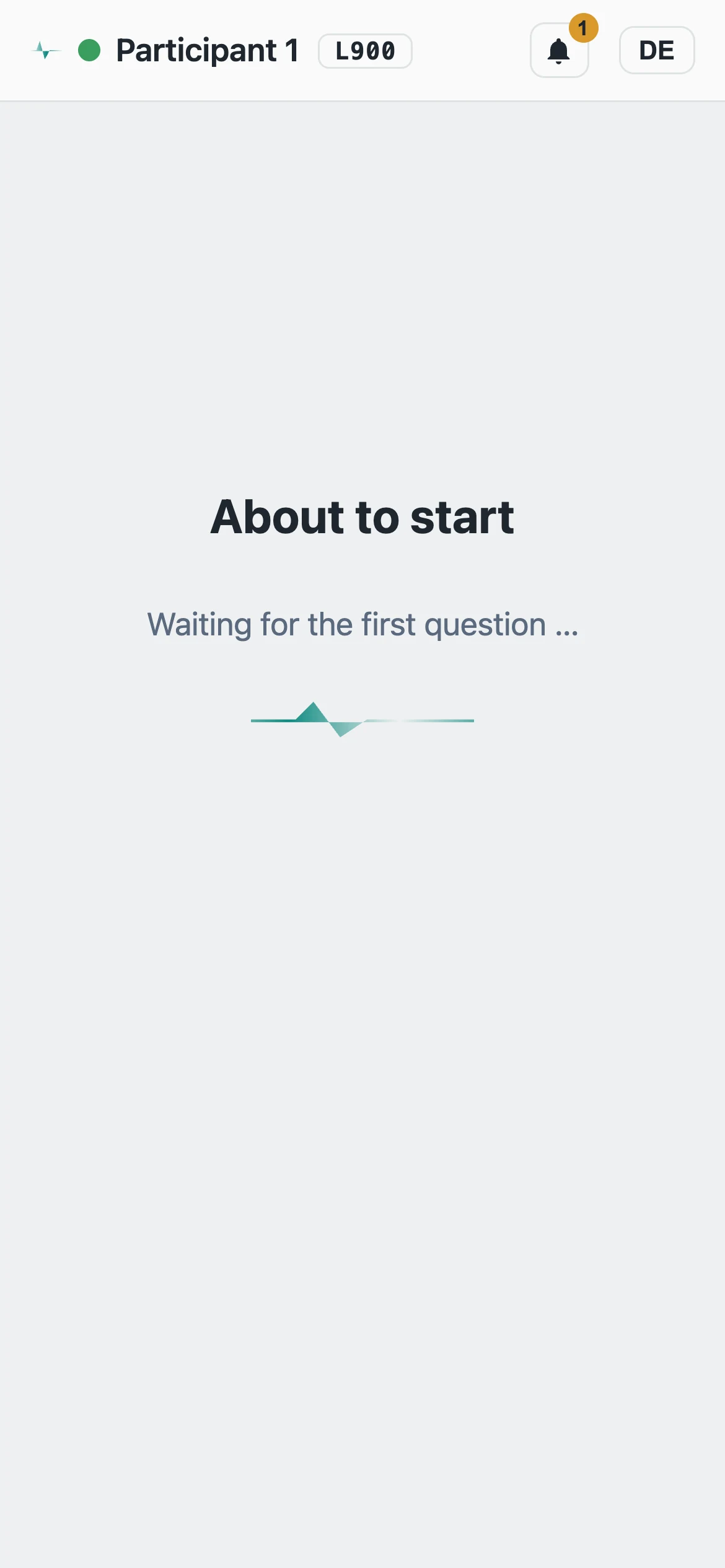

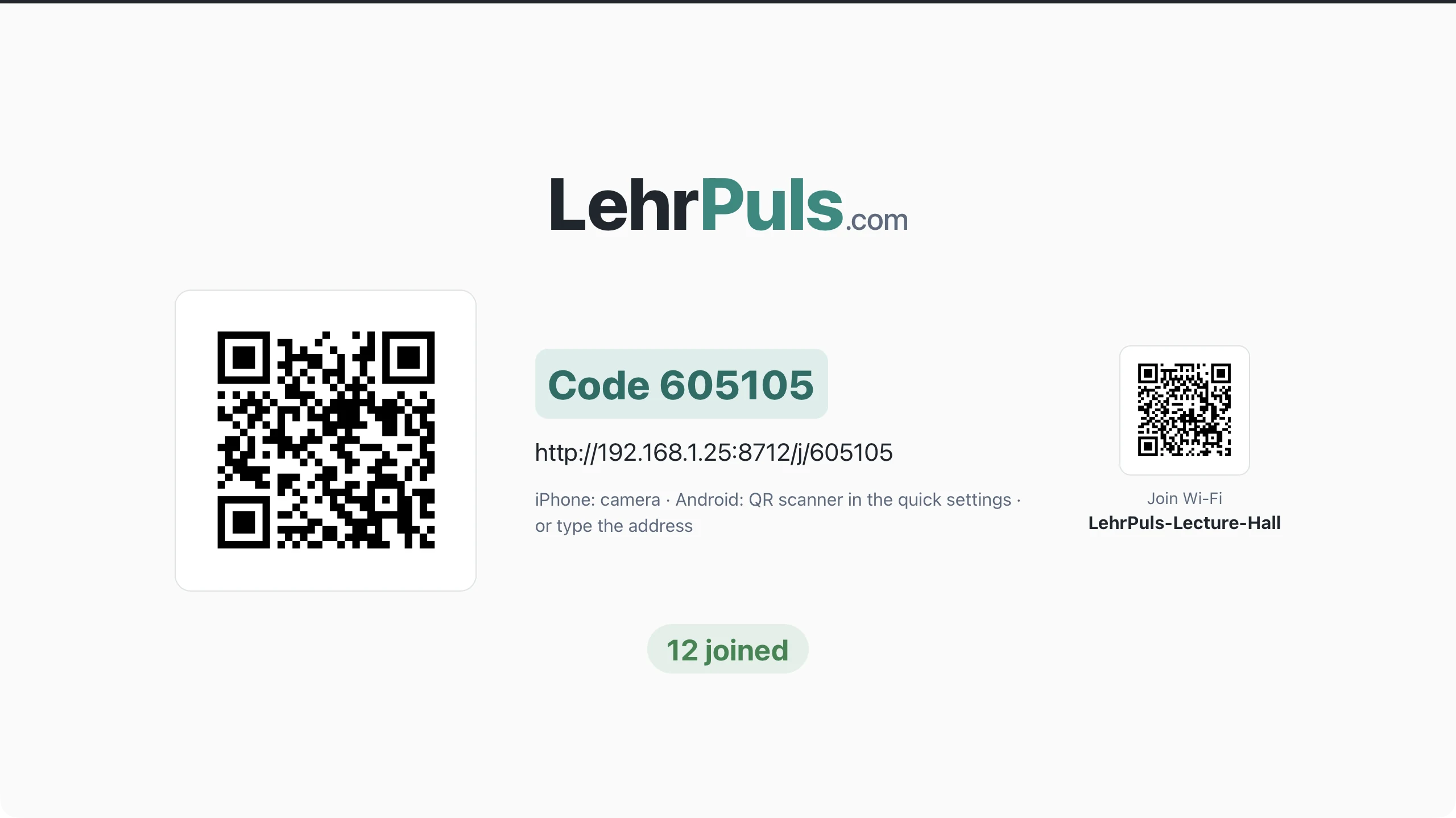

Start the session: participants join
Step 5 of 14

After the start, the projector shows the QR code and the address. Participants scan the code with their smartphone and they are in — no app, no account. How to start a session is shown in the guide Running a session.

Projector

Smartphone
6

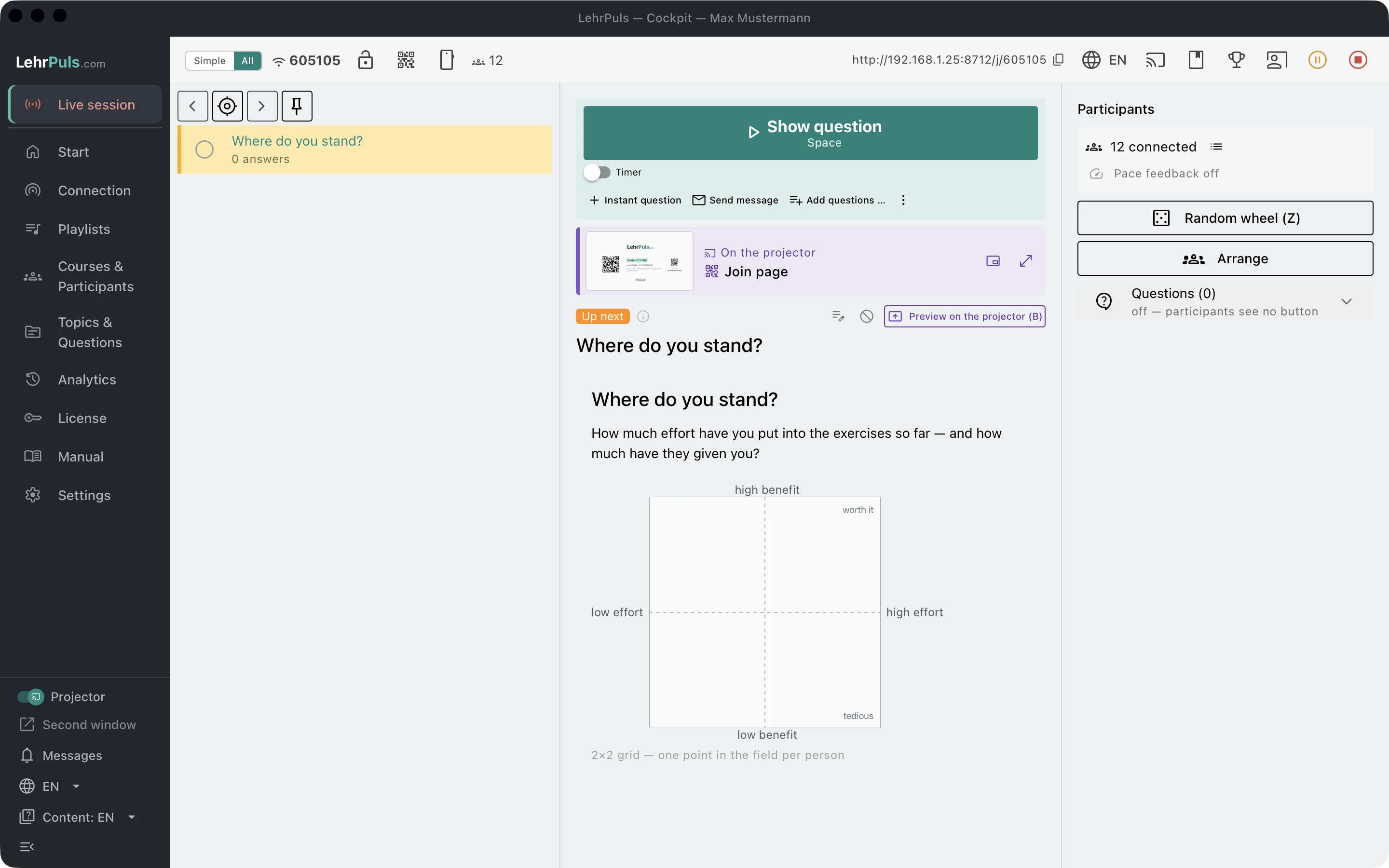

Show the question
Step 6 of 14

In the live cockpit the question is listed on the left. The large Show question button — or the space bar — opens it on all devices and shows it on the projector.

11Show question (space bar)22connected devices

Cockpit
1. Show question (space bar)
2. connected devices
7

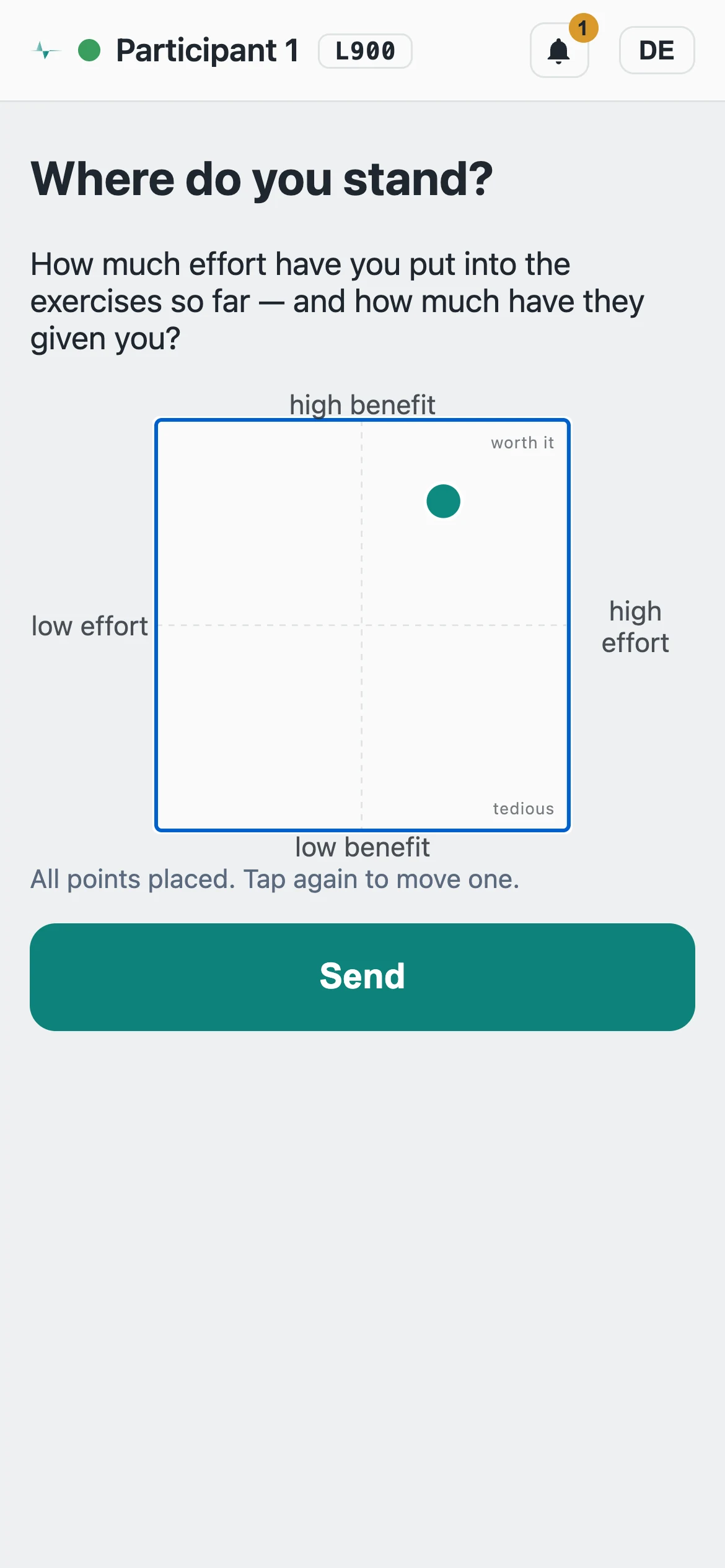

Answer on the smartphone
Step 7 of 14

The field with the axes appears on the smartphone. A tap places the point; then send.

11Place a point22Send

Smartphone
1. Place a point
2. Send
8

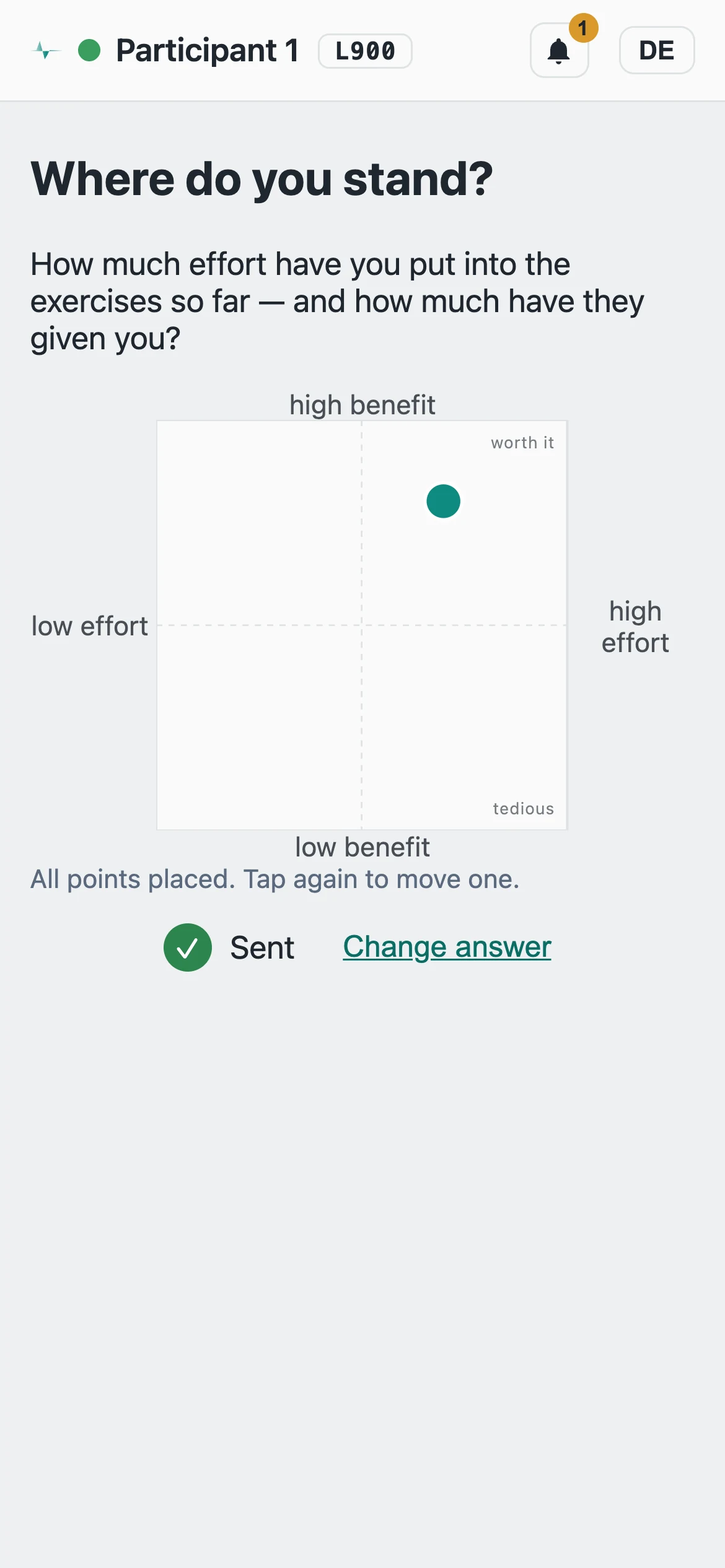

The answer has arrived
Step 8 of 14

After sending, the smartphone confirms receipt. Until the question is closed, Change answer still allows corrections.

Smartphone
9

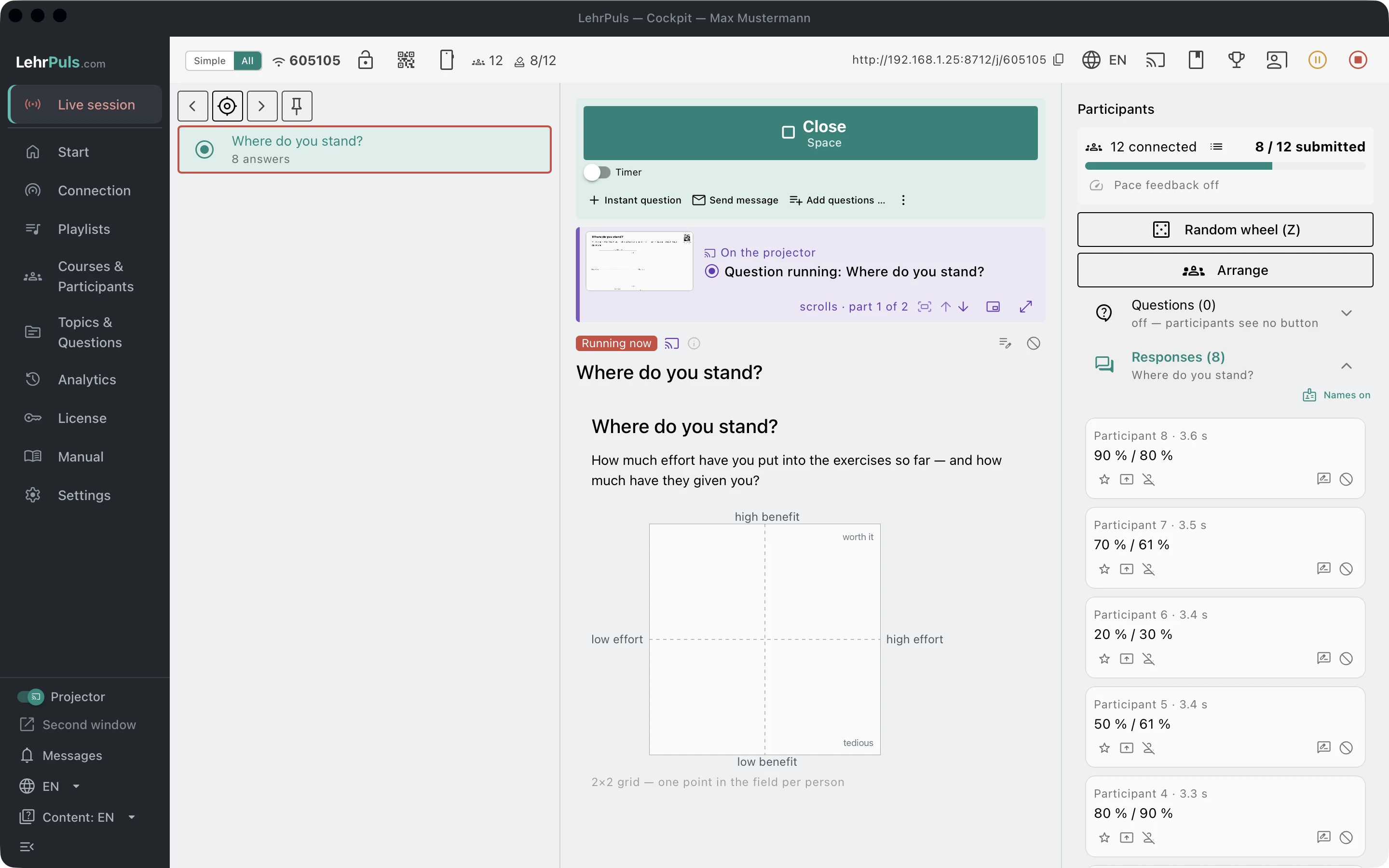

Answers come in
Step 9 of 14

In the cockpit the points grow under Running result as answers come in.

11Submissions so far22Close (space bar)33single answers

Cockpit
1. Submissions so far
2. Close (space bar)
3. single answers
10

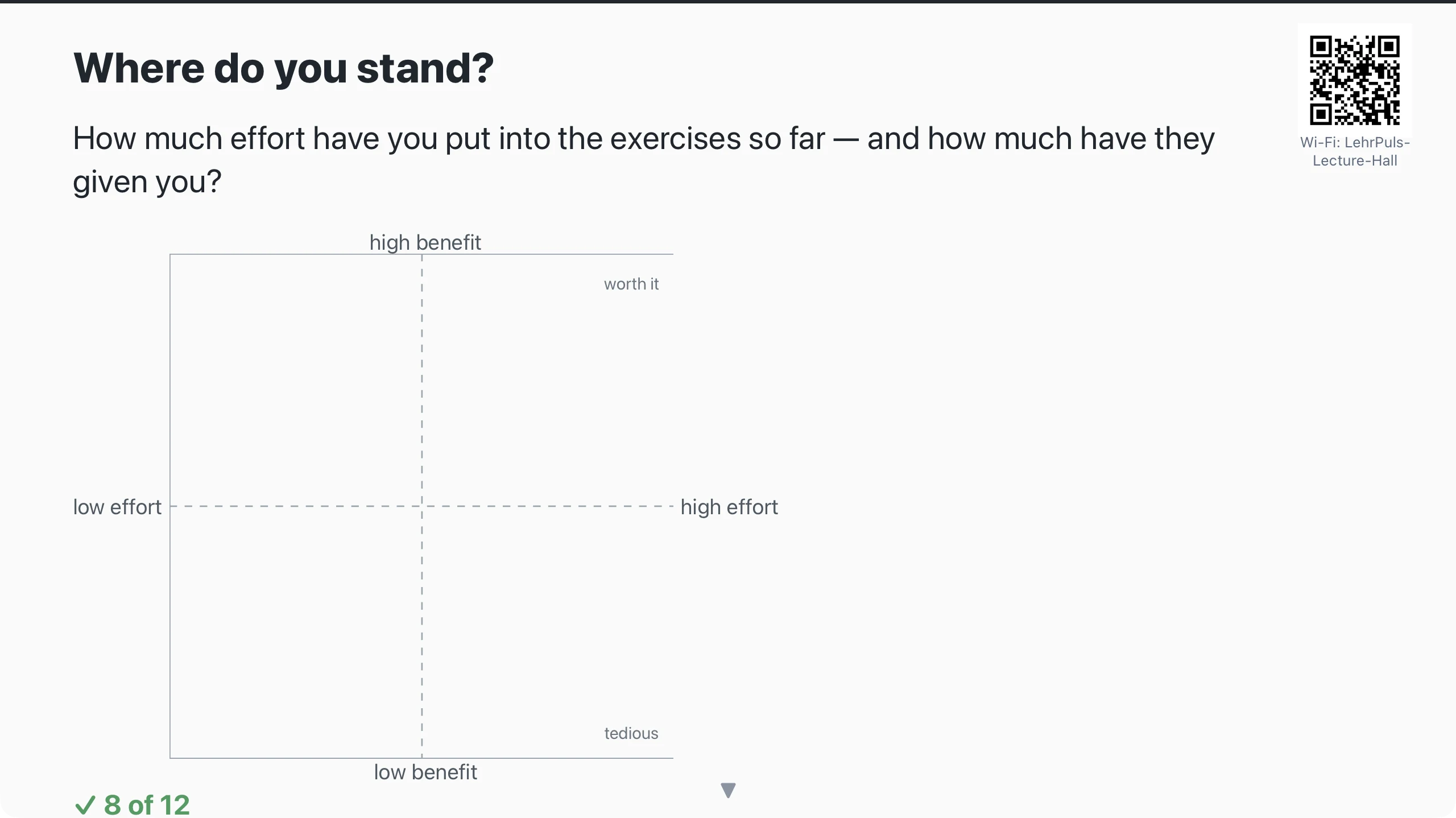

The projector while collecting
Step 10 of 14

With Show the result on the wall while collecting the points also grow on the projector; otherwise it shows the empty field with its labels until the reveal.

Projector
11

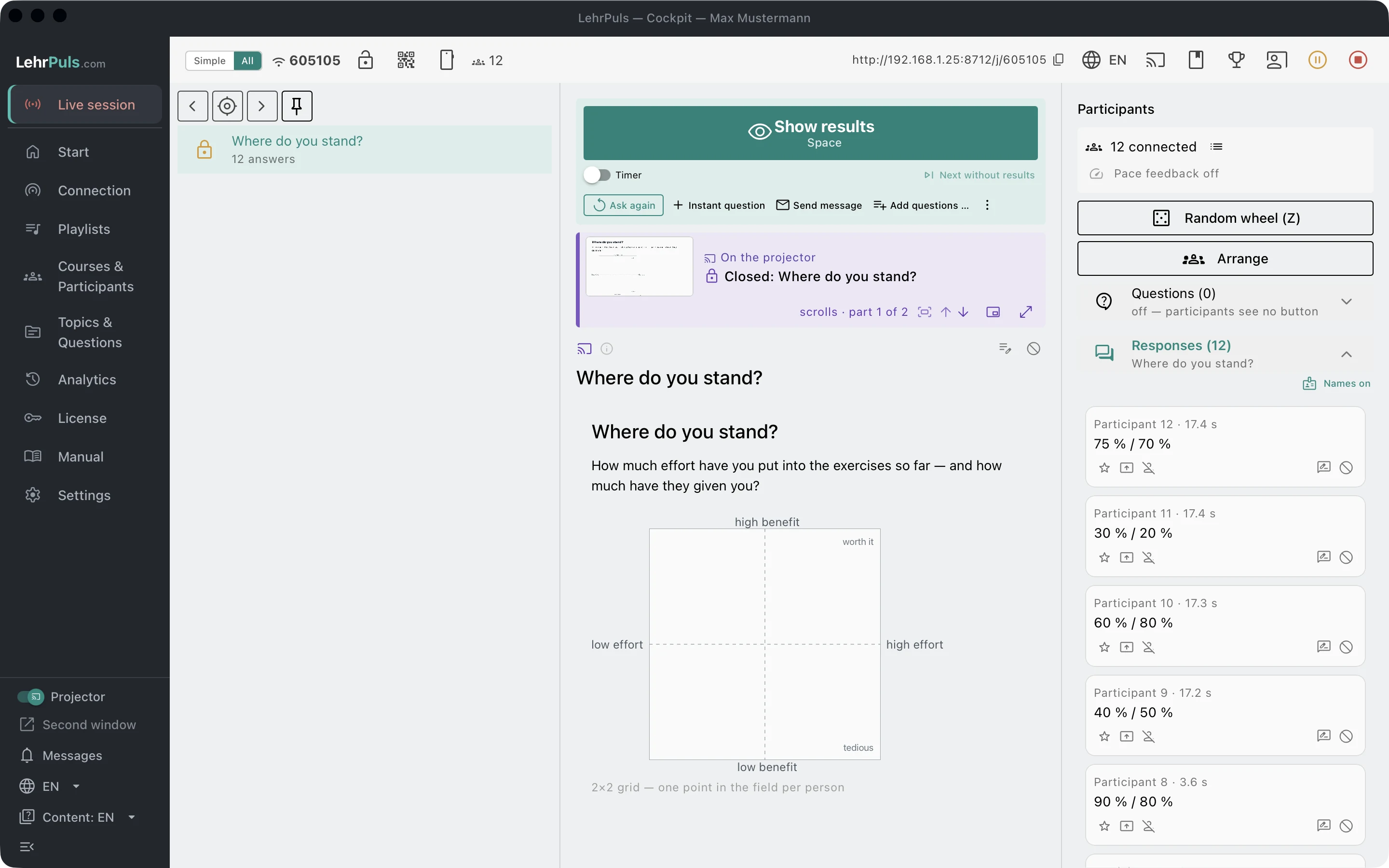

Close the question, then reveal
Step 11 of 14

Close ends the submission; after that LehrPuls accepts no more answers. The main button now reads Show results — one more press of the space bar shows the result.

11Show results

Cockpit
1. Show results
12
The reveal on the projector
Step 12 of 14

The reveal shows all points in the field — clusters are visible at once.

Projector
13
The reveal on the smartphone
Step 13 of 14

The smartphone shows the same points, with your own one outlined.

Smartphone
14

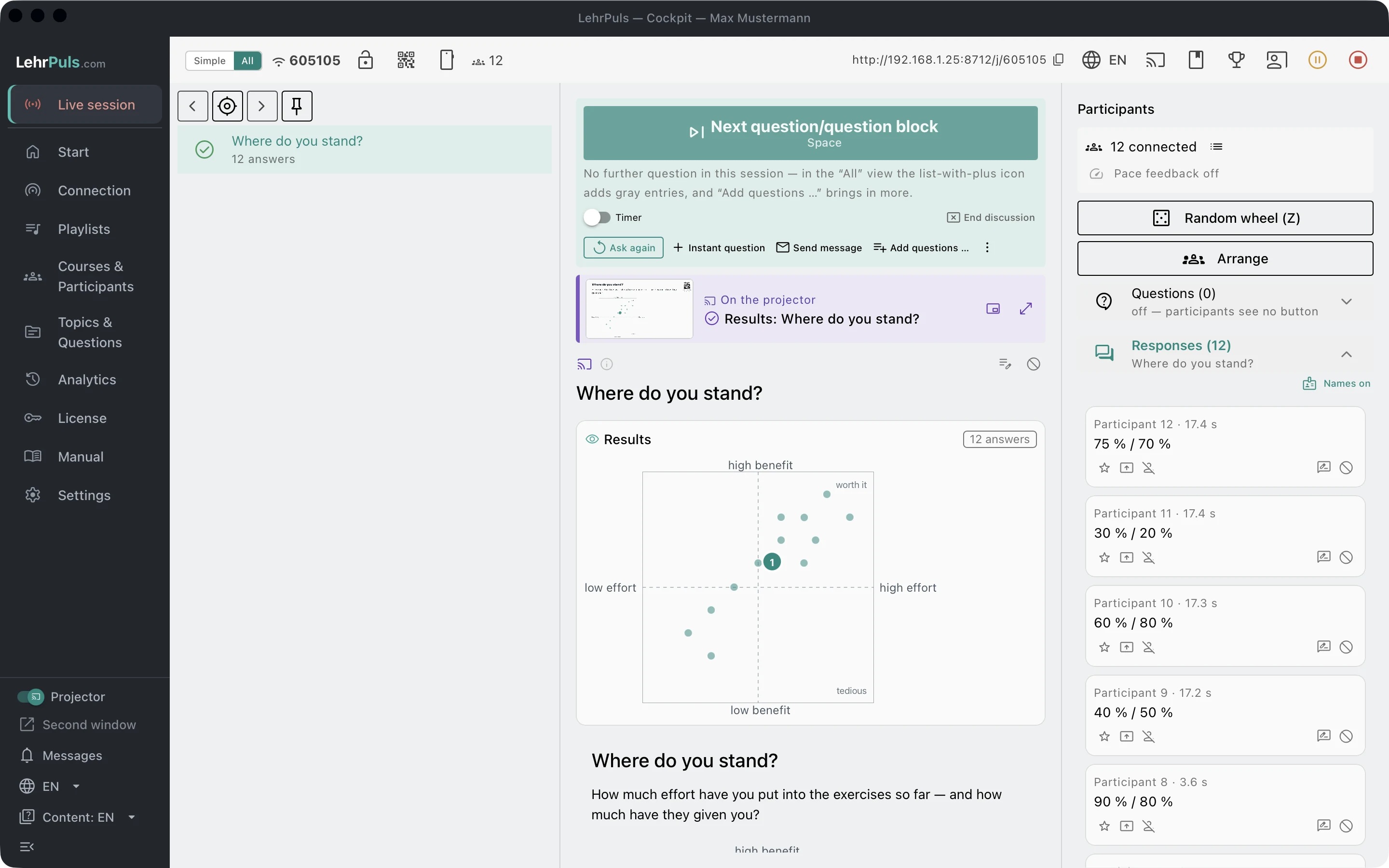

The reveal in the cockpit
Step 14 of 14

The cockpit shows the result as well. The space bar moves on to the next question; after the session everything is under Analytics.

Cockpit

With elements

With up to eight elements, every person places one point for each element — for example study methods by effort and benefit. The reveal shows the center of each element with its number.

1

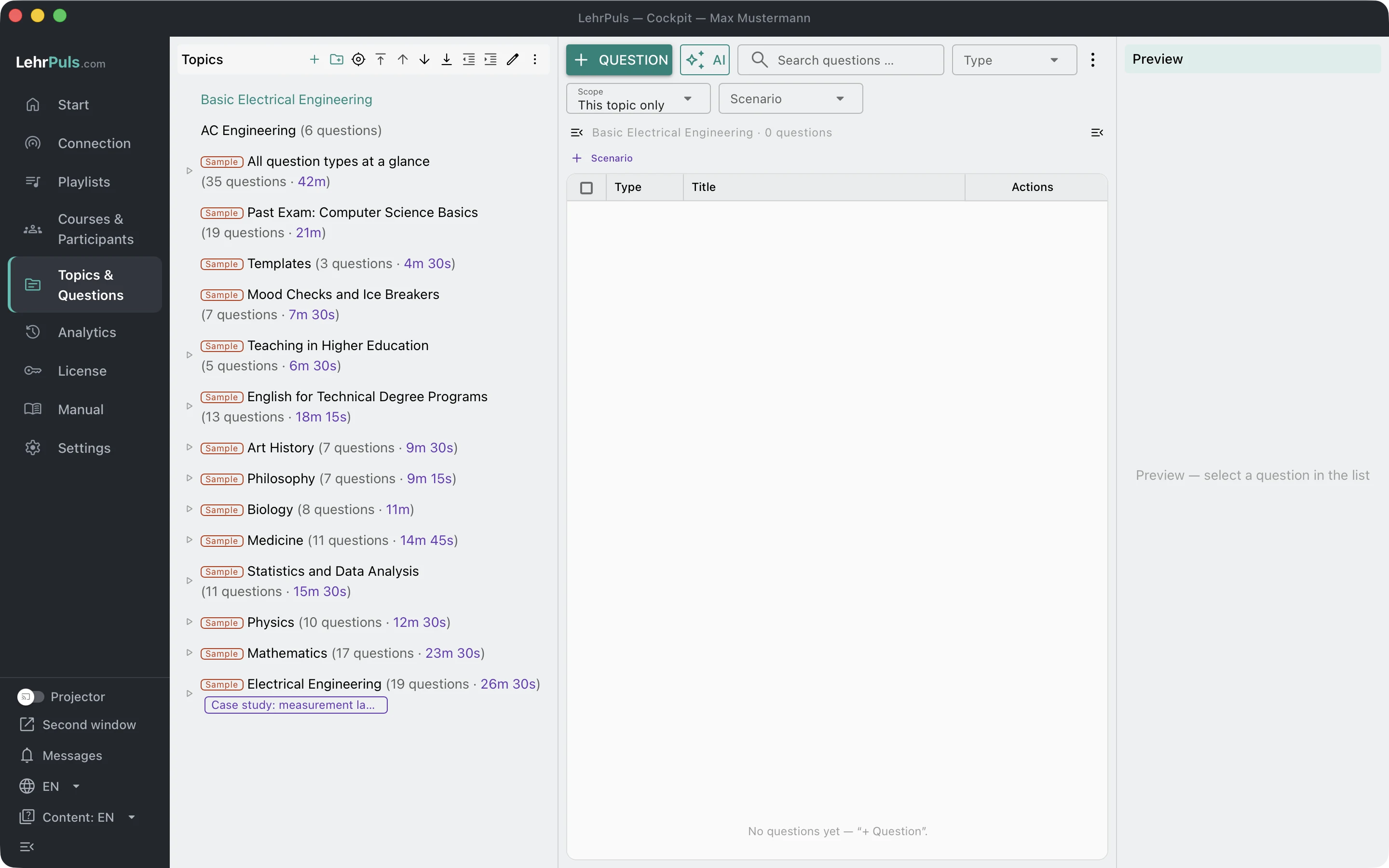

Create a new question
Step 1 of 14

Open Topics & Questions, select the topic on the left where the question belongs, and click + Question.

11Topics & Questions22Select topic33New question

Cockpit
1. Topics & Questions
2. Select topic
3. New question
2

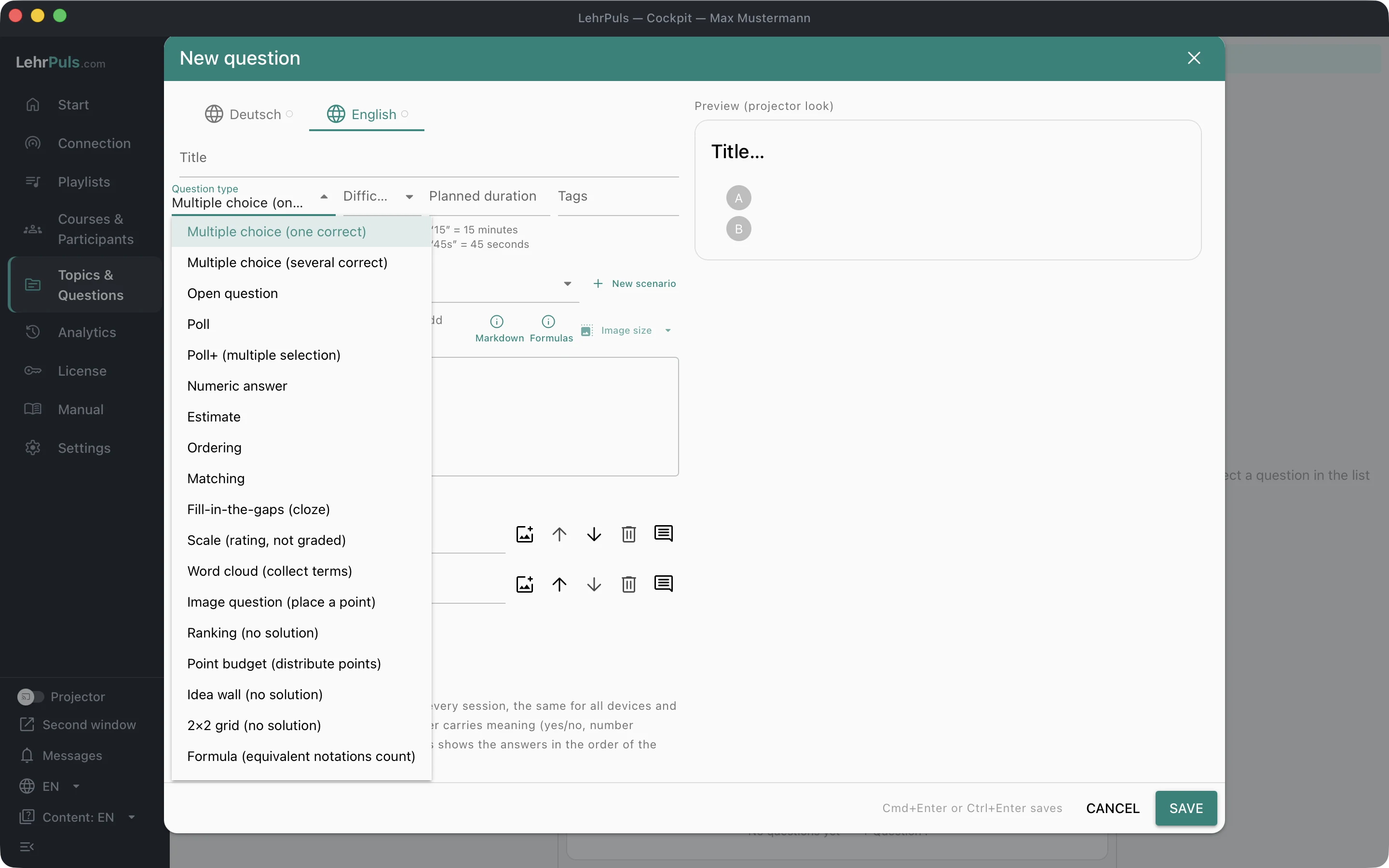

Choose the question type
Step 2 of 14

The editor opens. Click the Question type field and choose 2×2 grid (no solution).

112×2 grid (no solution)

Cockpit
1. 2×2 grid (no solution)
3

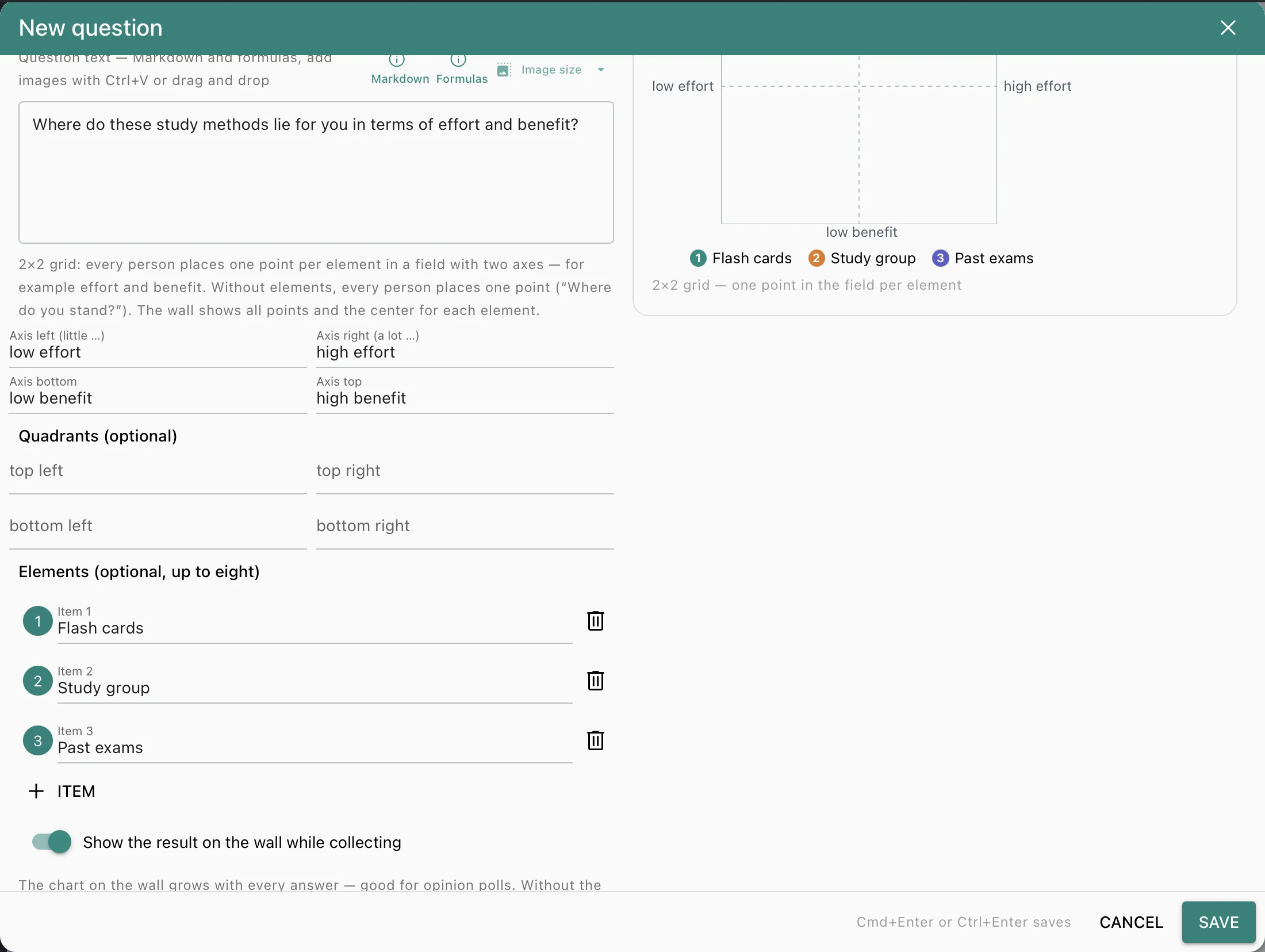

Enter the elements

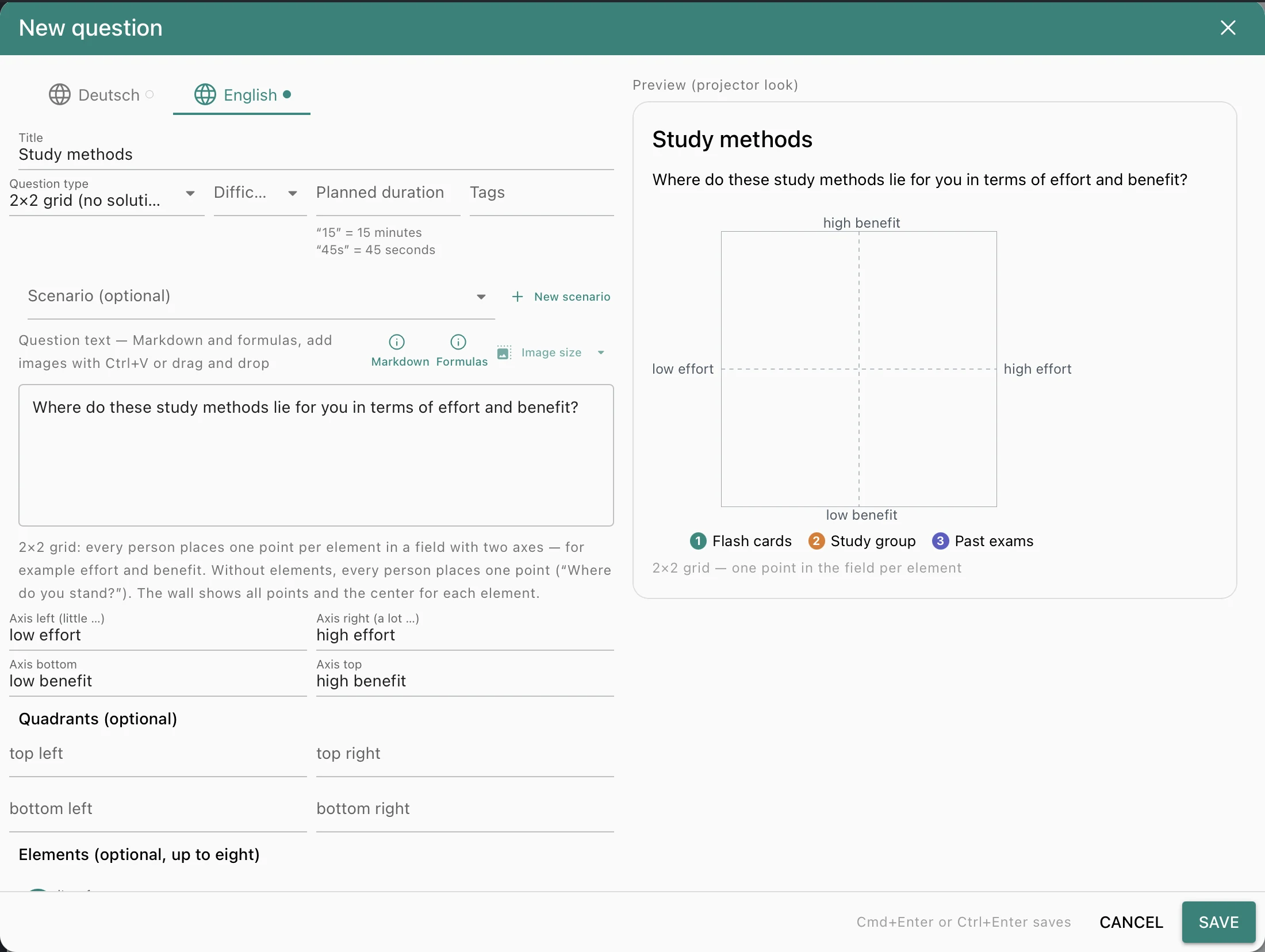

Step 3 of 14

Under Elements, enter up to eight entries (+ Item for more); empty rows are dropped when saving. Here Show the result on the wall while collecting is switched on as well.

11Question text22Elements33live on the wall44Preview

Cockpit
1. Question text
2. Elements
3. live on the wall
4. Preview
4
Save
Step 4 of 14

Click Save (or press Cmd+Enter or Ctrl+Enter). The question is now in the topic and can be added to any playlist.

11Save

Cockpit
1. Save
5

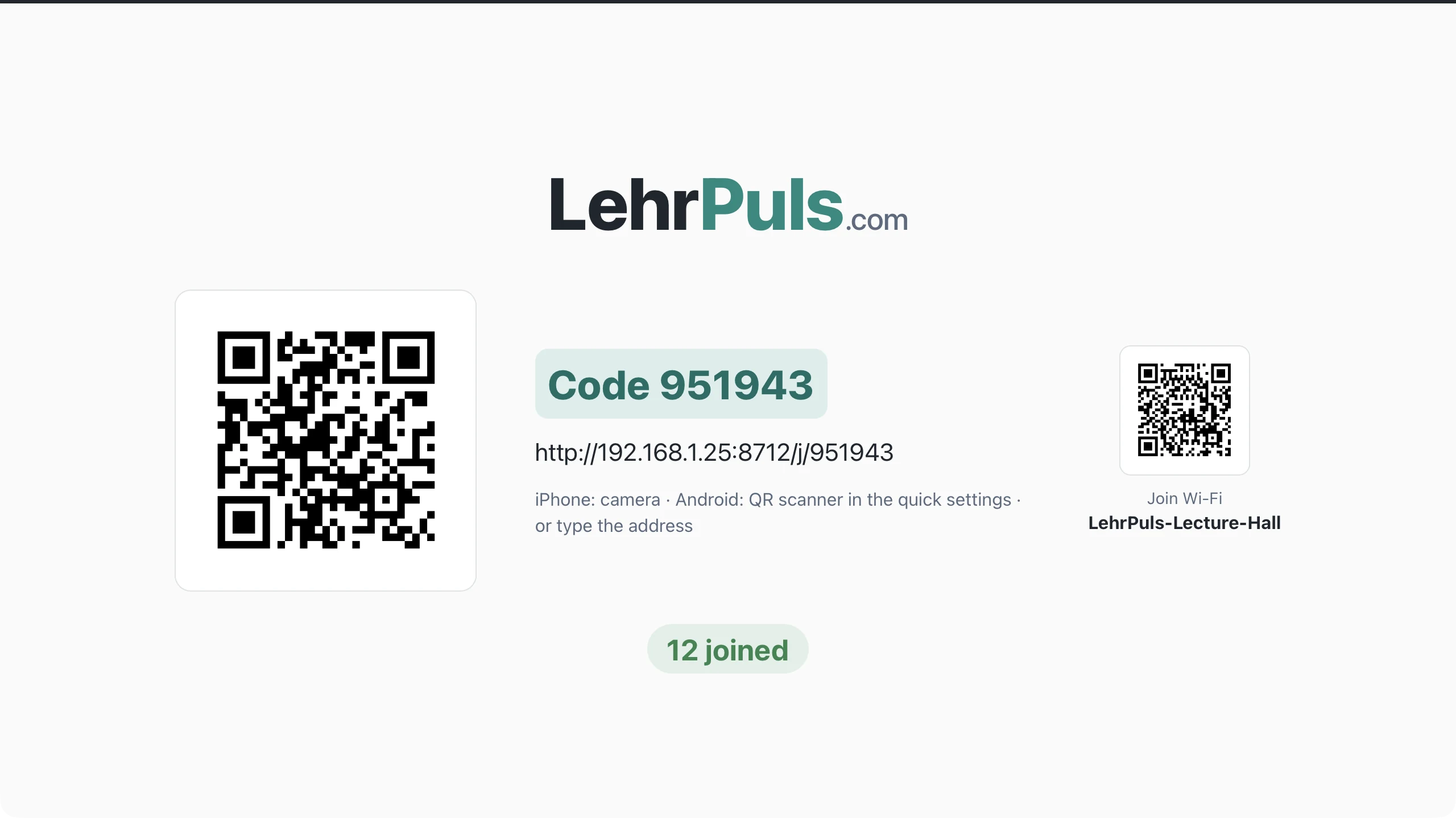

Start the session: participants join
Step 5 of 14

After the start, the projector shows the QR code and the address. Participants scan the code with their smartphone and they are in — no app, no account. How to start a session is shown in the guide Running a session.

Projector

Smartphone
6

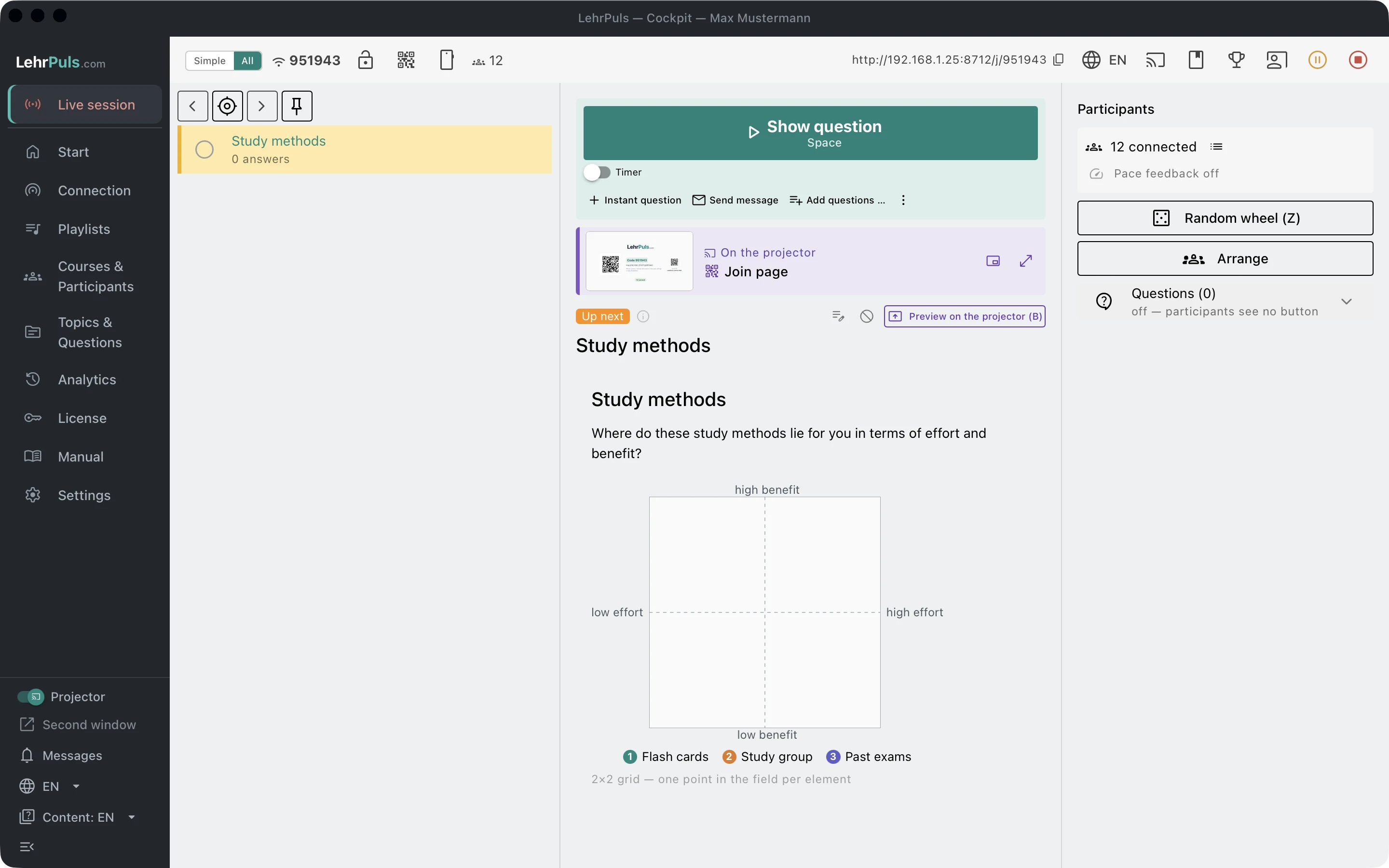

Show the question
Step 6 of 14

In the live cockpit the question is listed on the left. The large Show question button — or the space bar — opens it on all devices and shows it on the projector.

11Show question (space bar)22connected devices

Cockpit
1. Show question (space bar)
2. connected devices
7
Answer on the smartphone
Step 7 of 14

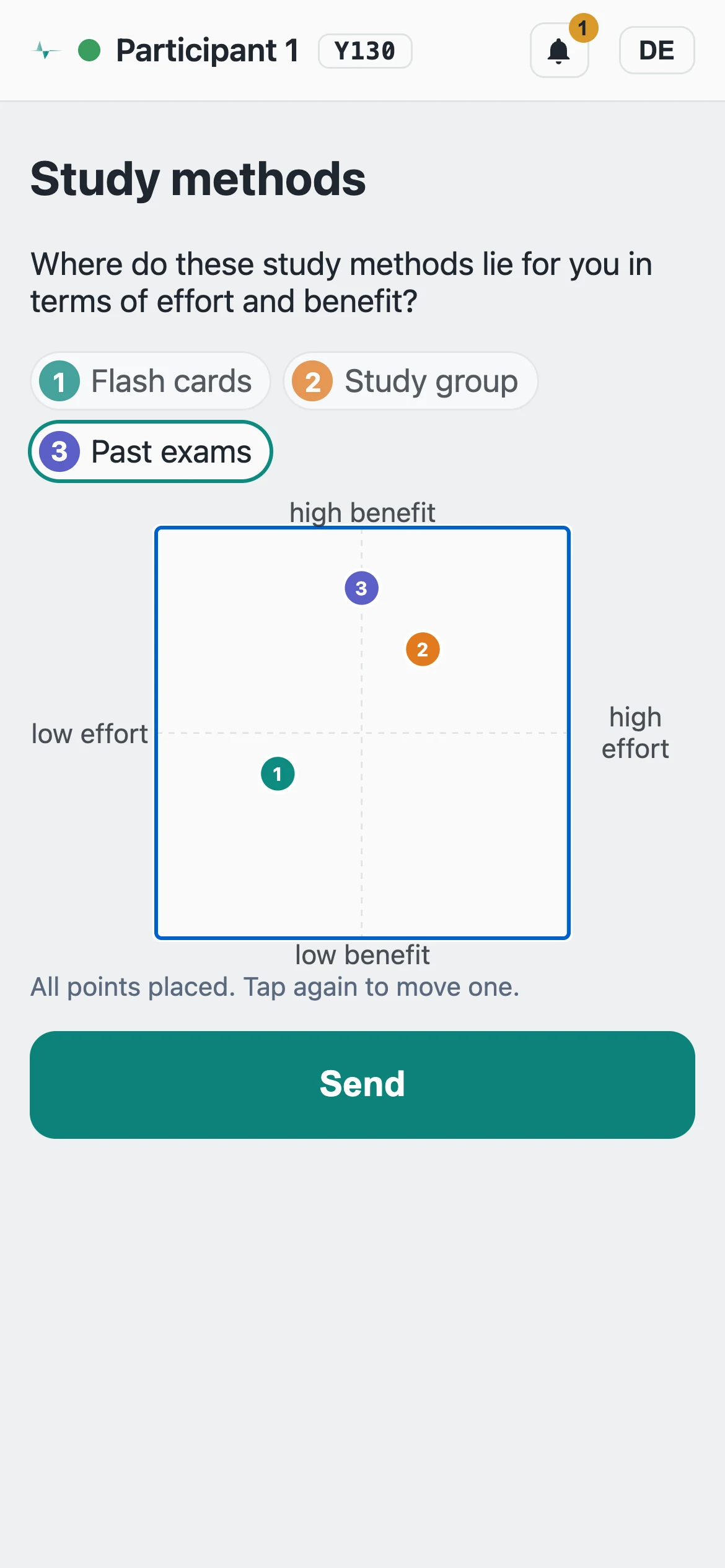

The elements appear as buttons at the top. Participants choose an element and tap the field; the selection then jumps to the next element. Sending is possible once every element has a point.

11Choose an element22Place a point33Send

Smartphone
1. Choose an element
2. Place a point
3. Send
8

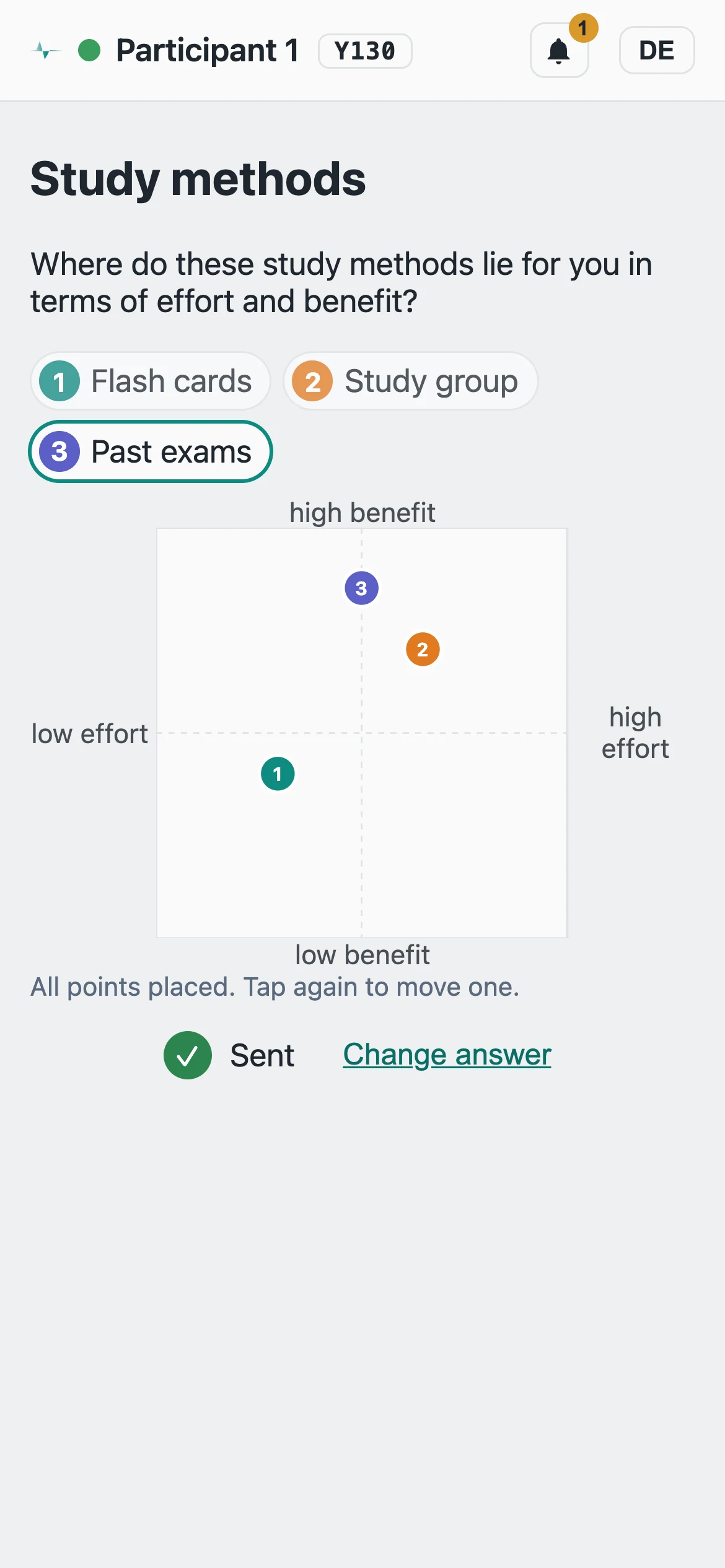

The answer has arrived
Step 8 of 14

After sending, the smartphone confirms receipt. Until the question is closed, Change answer still allows corrections.

Smartphone
9
Answers come in
Step 9 of 14

In the cockpit the points grow under Running result as answers come in.

11Submissions so far22Close (space bar)33single answers

Cockpit
1. Submissions so far
2. Close (space bar)
3. single answers
10
The projector while collecting
Step 10 of 14

With Show the result on the wall while collecting the points also grow on the projector; otherwise it shows the empty field with its labels until the reveal.

Projector
11

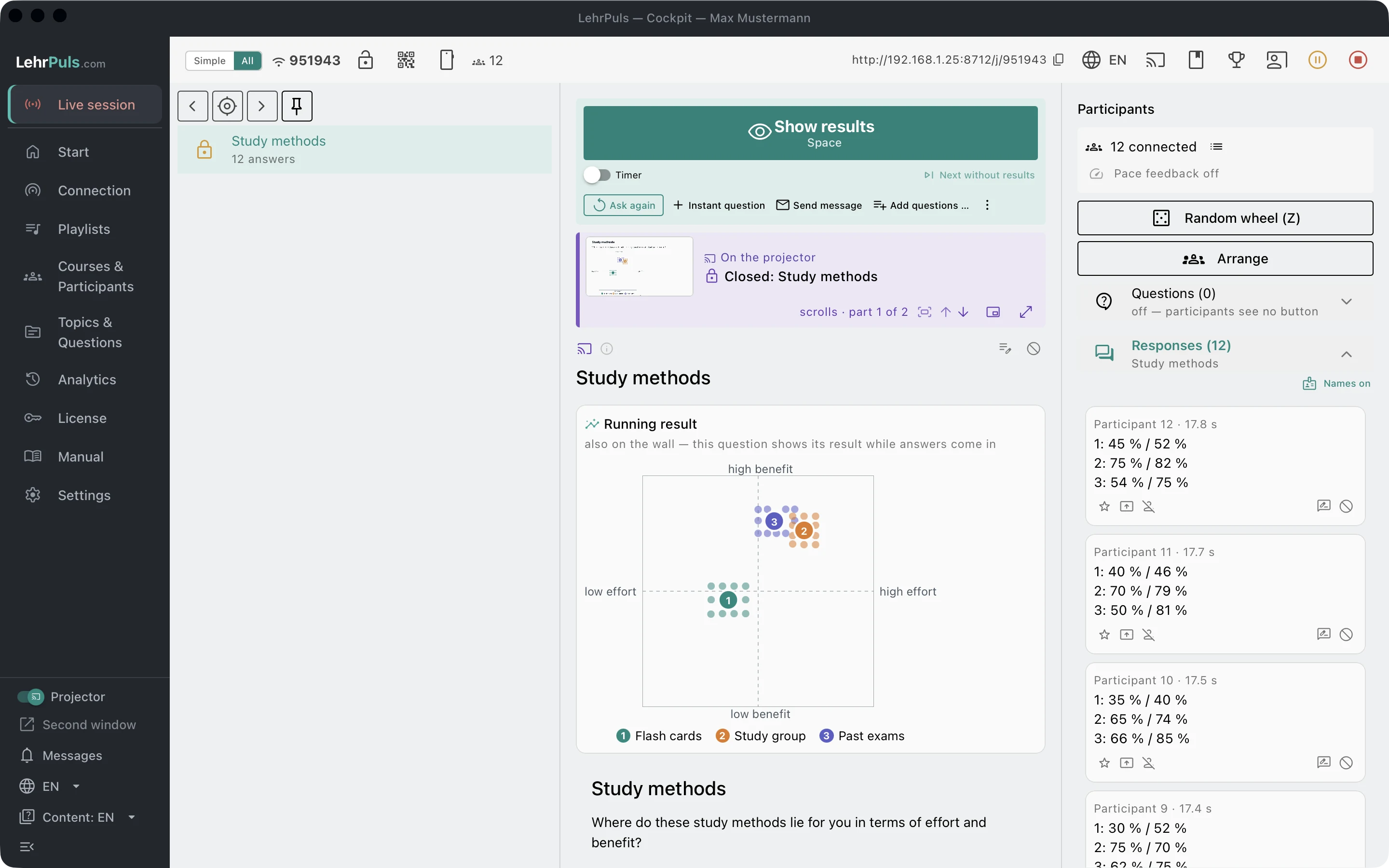

Close the question, then reveal
Step 11 of 14

Close ends the submission; after that LehrPuls accepts no more answers. The main button now reads Show results — one more press of the space bar shows the result.

11Show results

Cockpit
1. Show results
12

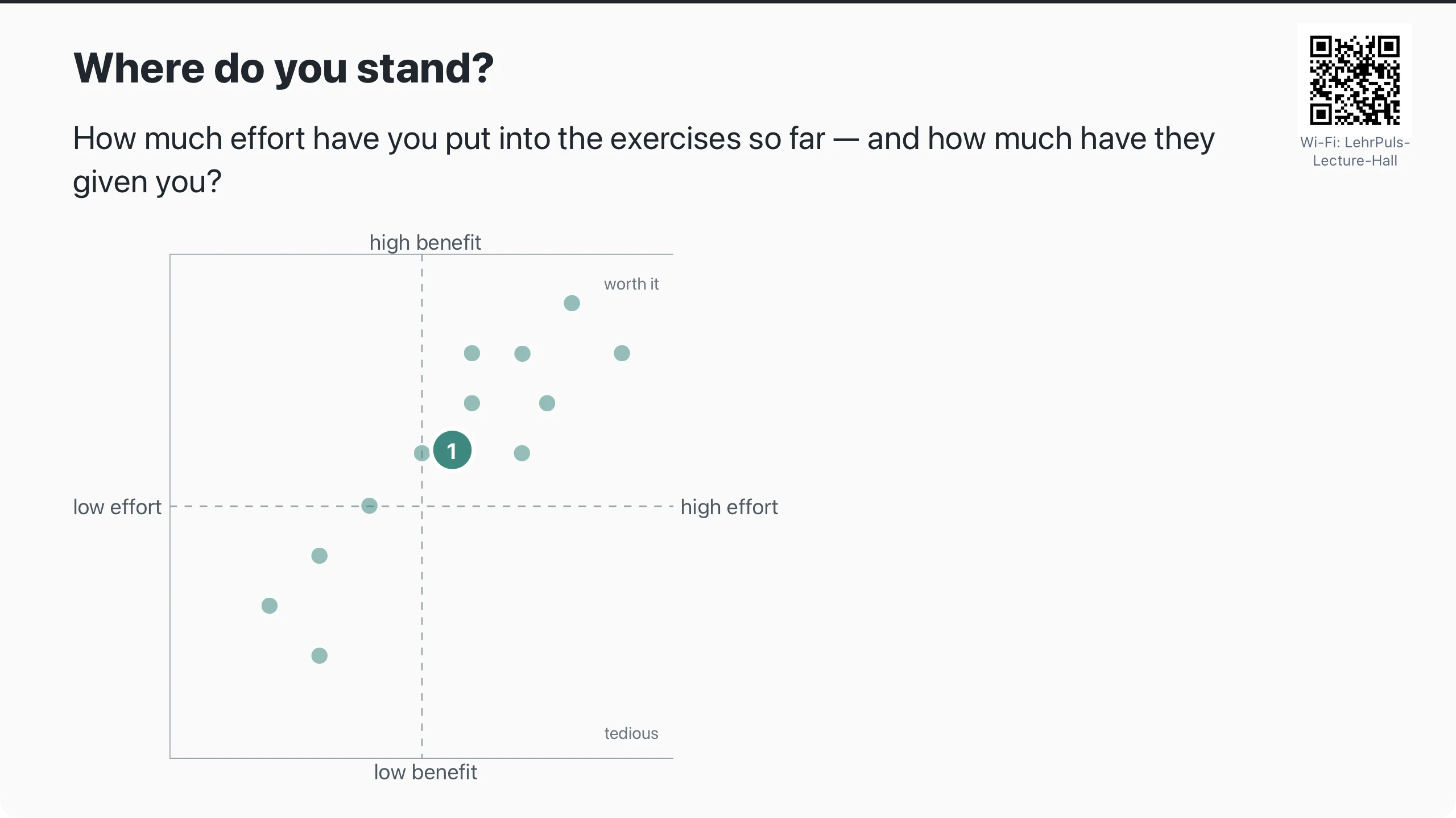

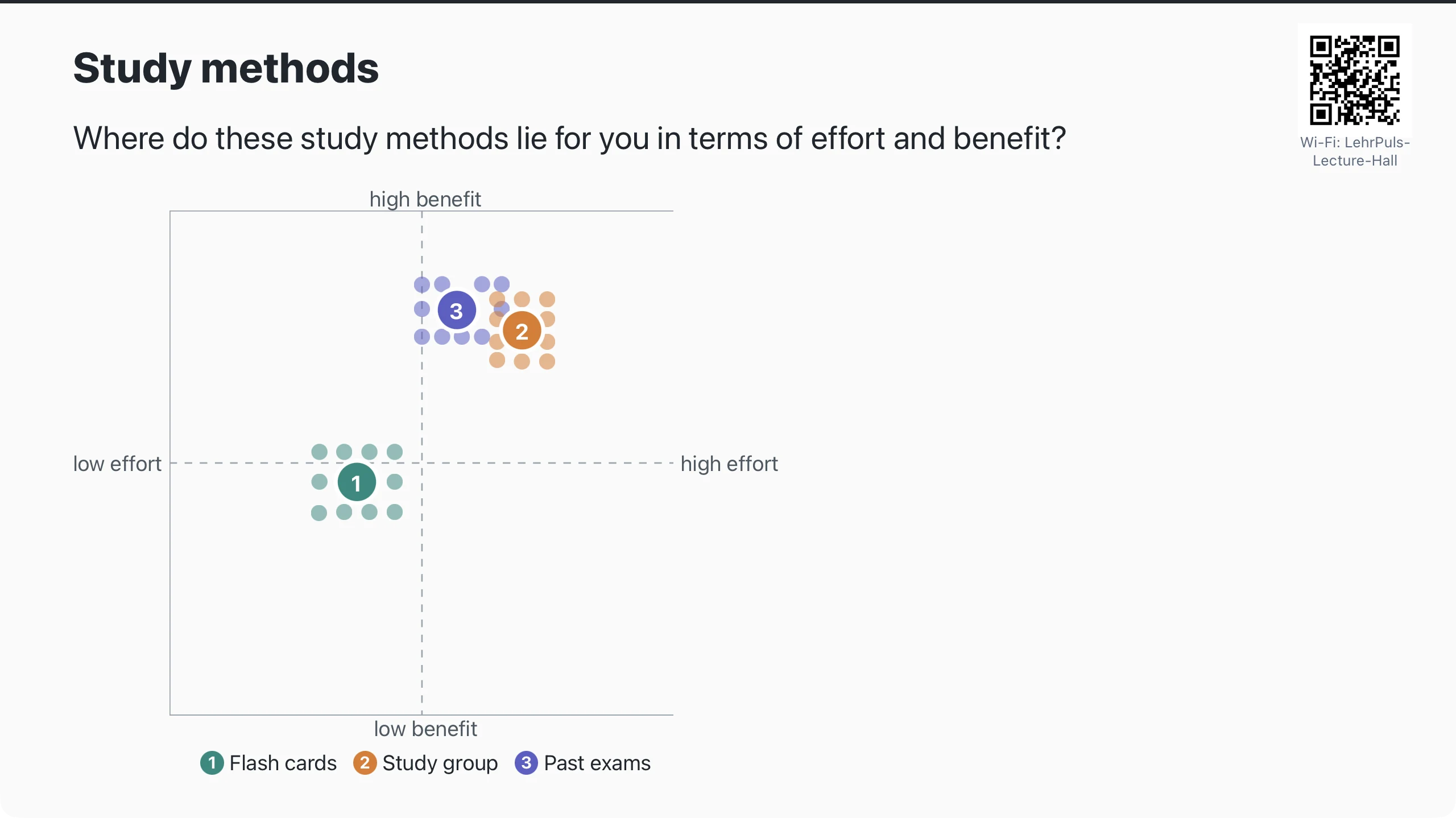

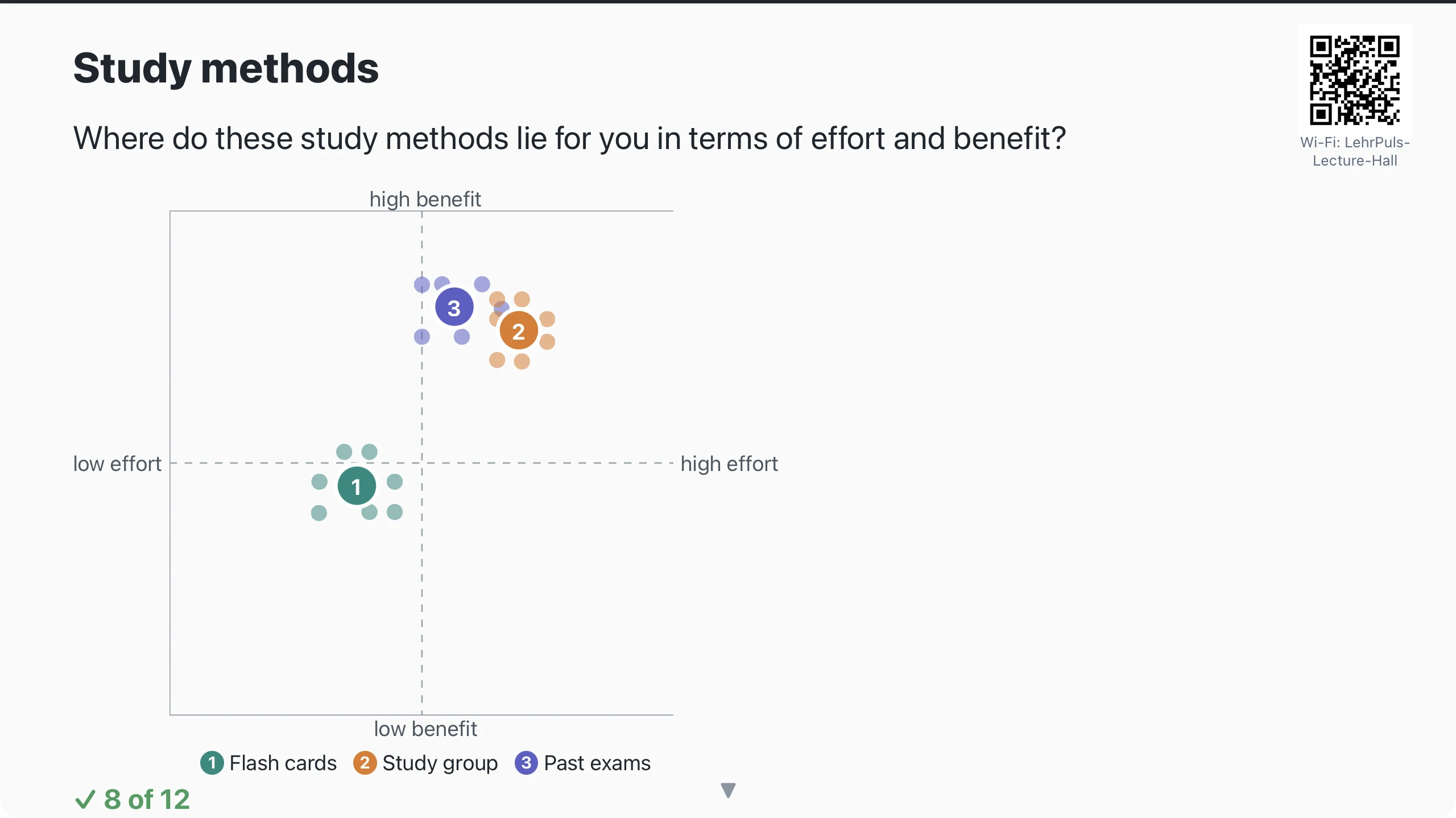

The reveal on the projector
Step 12 of 14

The reveal shows all points faintly and the center of each element with its number.

Projector
13
The reveal on the smartphone

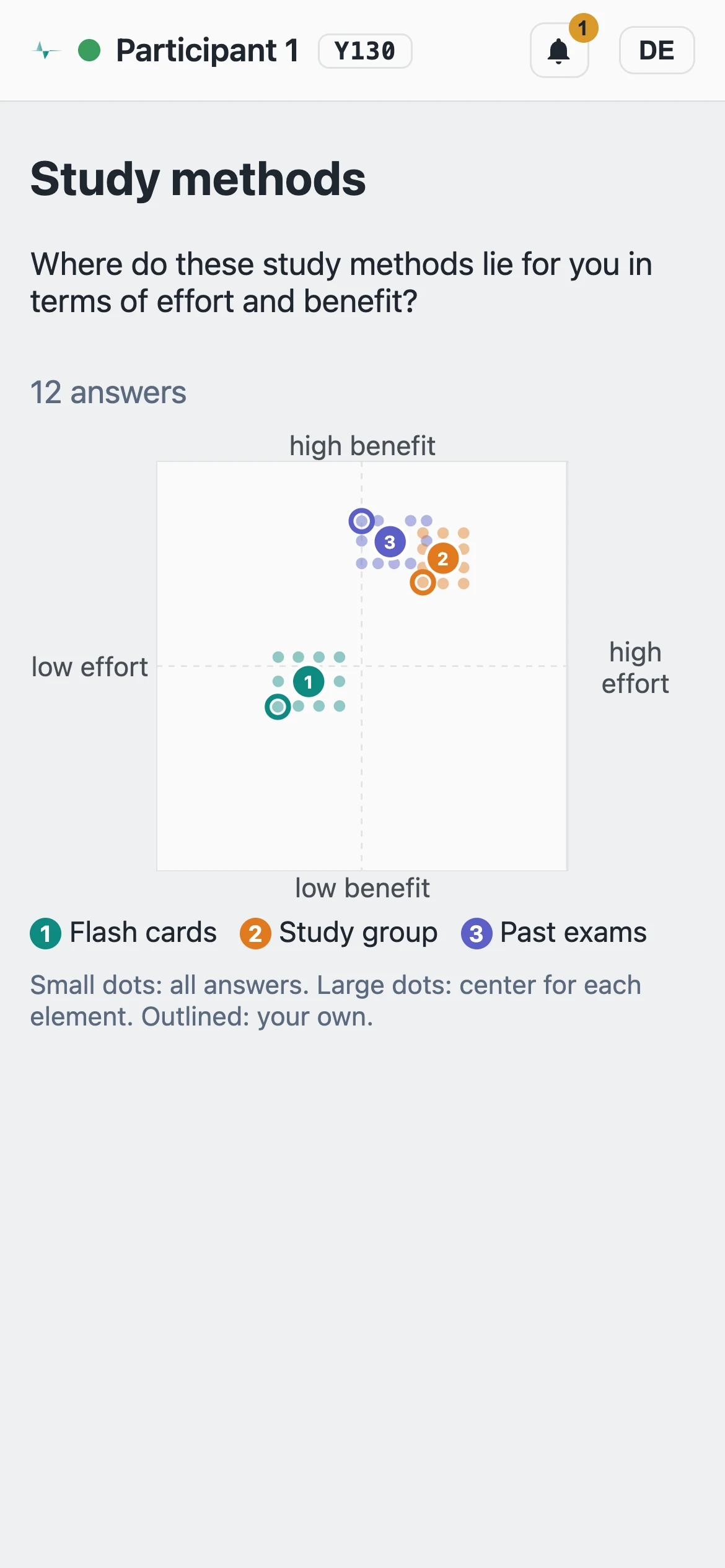

Step 13 of 14

The smartphone shows the same centers, with your own points outlined.

Smartphone
14

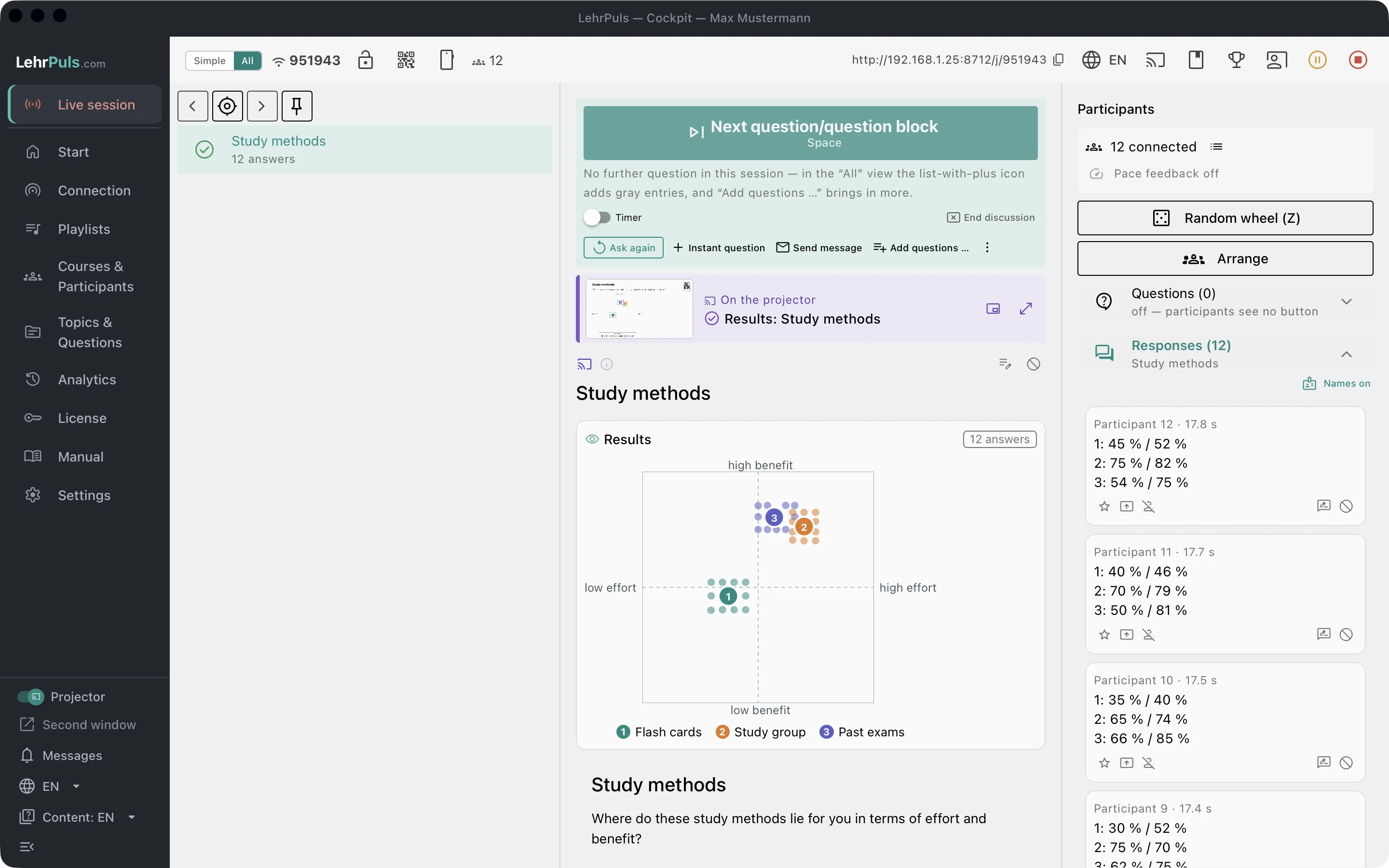

The reveal in the cockpit
Step 14 of 14

The cockpit shows the result as well. The space bar moves on to the next question; after the session everything is under Analytics.

Cockpit
