Image question

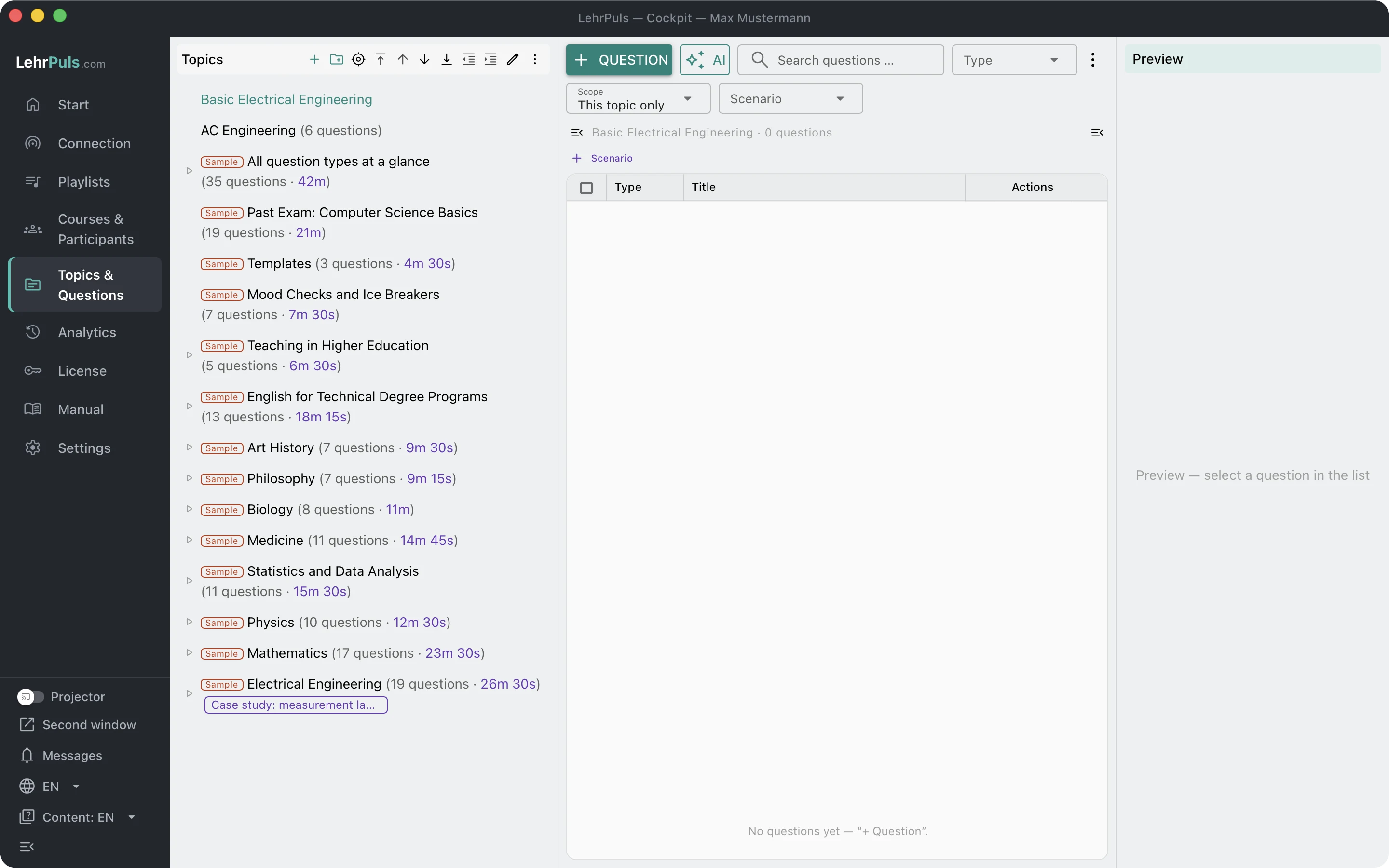

Open Topics & Questions, select the topic on the left where the question belongs, and click + Question.

11Topics & Questions22Select topic33New question

1. Topics & Questions
2. Select topic
3. New question

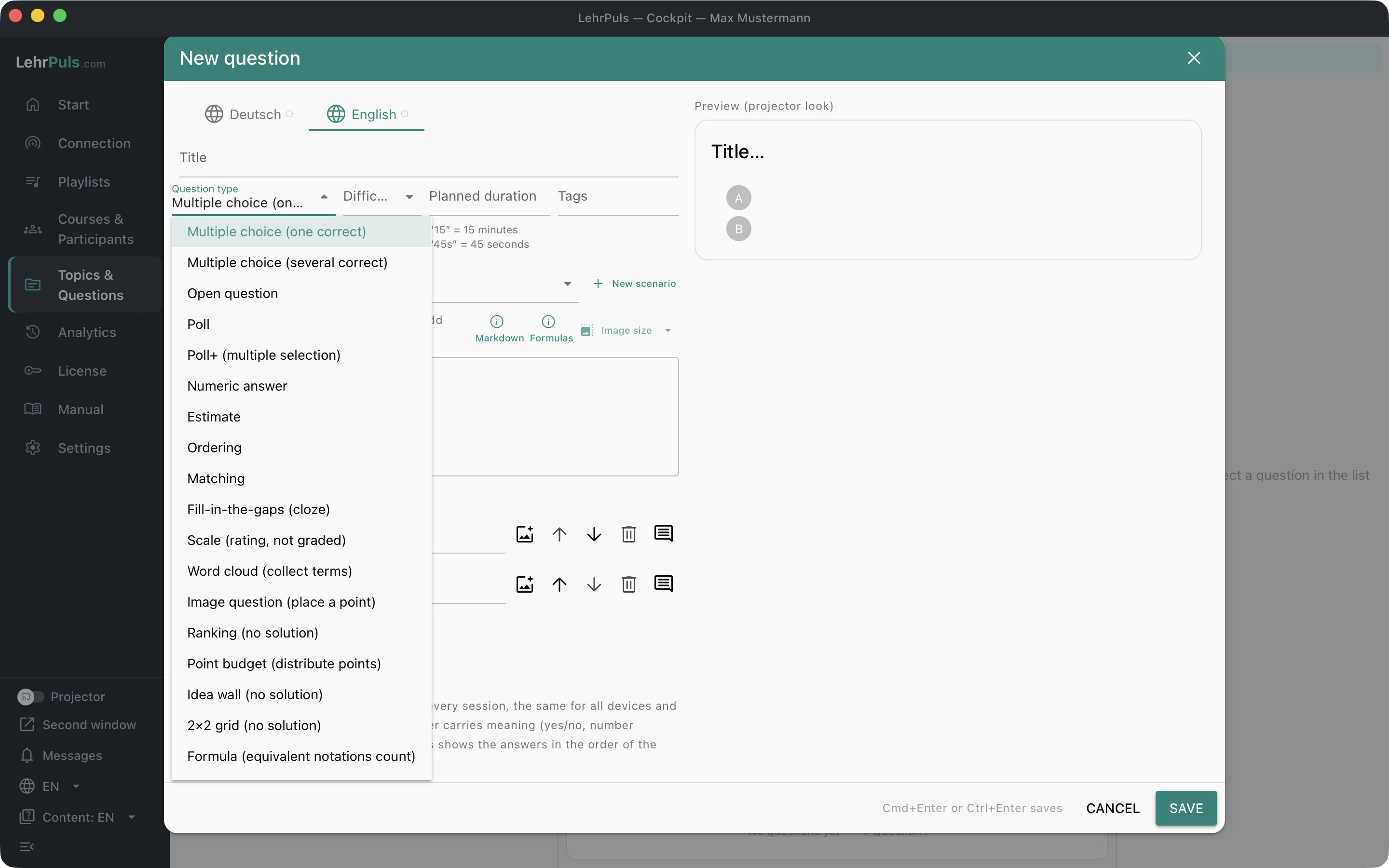

The editor opens. Click the Question type field and choose Image question (place a point).

11Image question (place a point)

1. Image question (place a point)

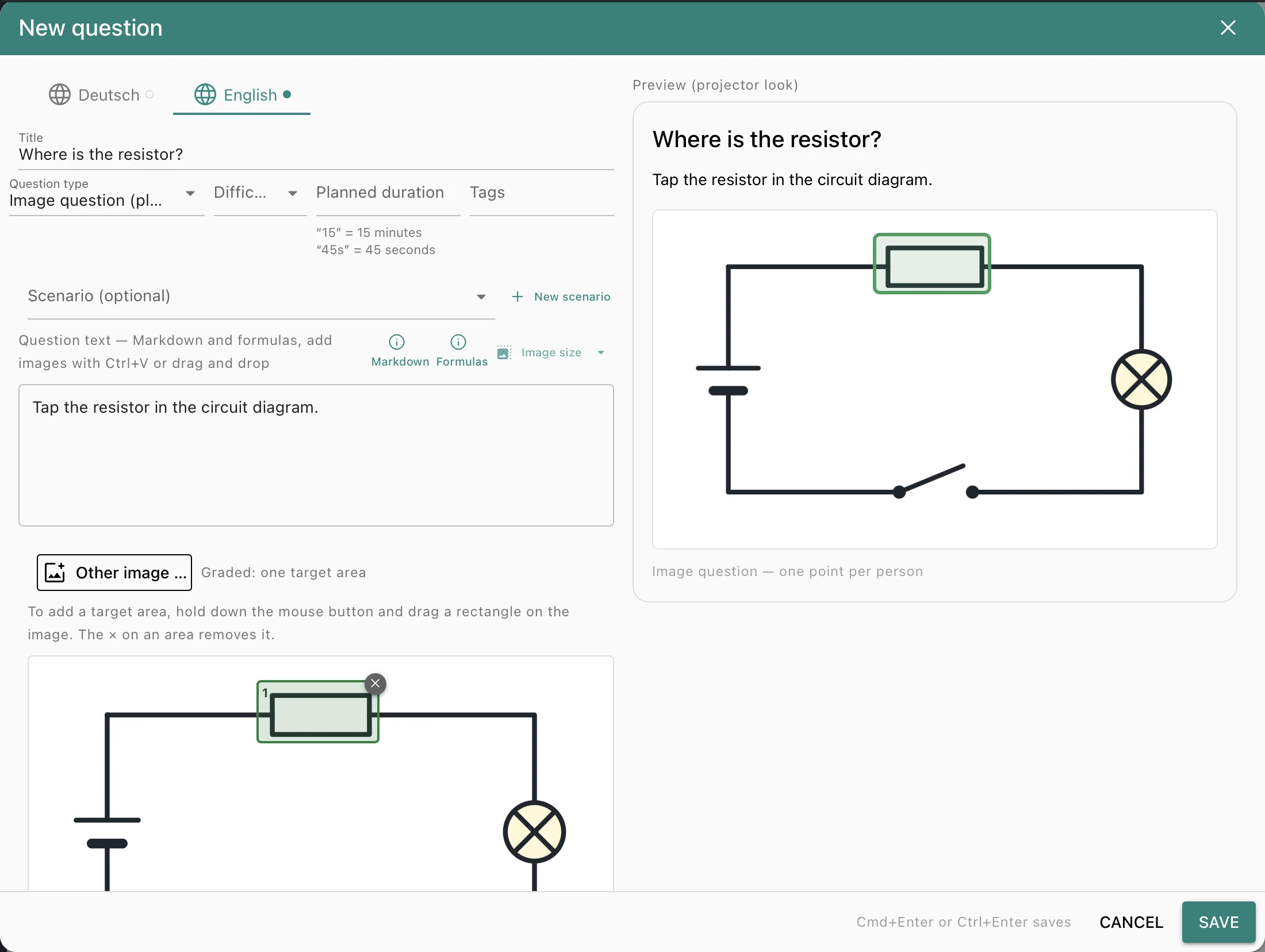

Choose the question type Image question (place a point) and load the image with Choose image … or drag the image file onto this area (PNG, JPEG, GIF, WebP or SVG). Then hold down the mouse button and drag a rectangle around the component in question. Each area carries a number; its × removes it. Above the image it reads “Graded: one target area”.

11Title22Question text33Drag a target area44Choose an image or drag it in55Preview

1. Title
2. Question text
3. Drag a target area
4. Choose an image or drag it in
5. Preview

Click Save (or press Cmd+Enter or Ctrl+Enter). The question is now in the topic and can be added to any playlist.

11Save

1. Save

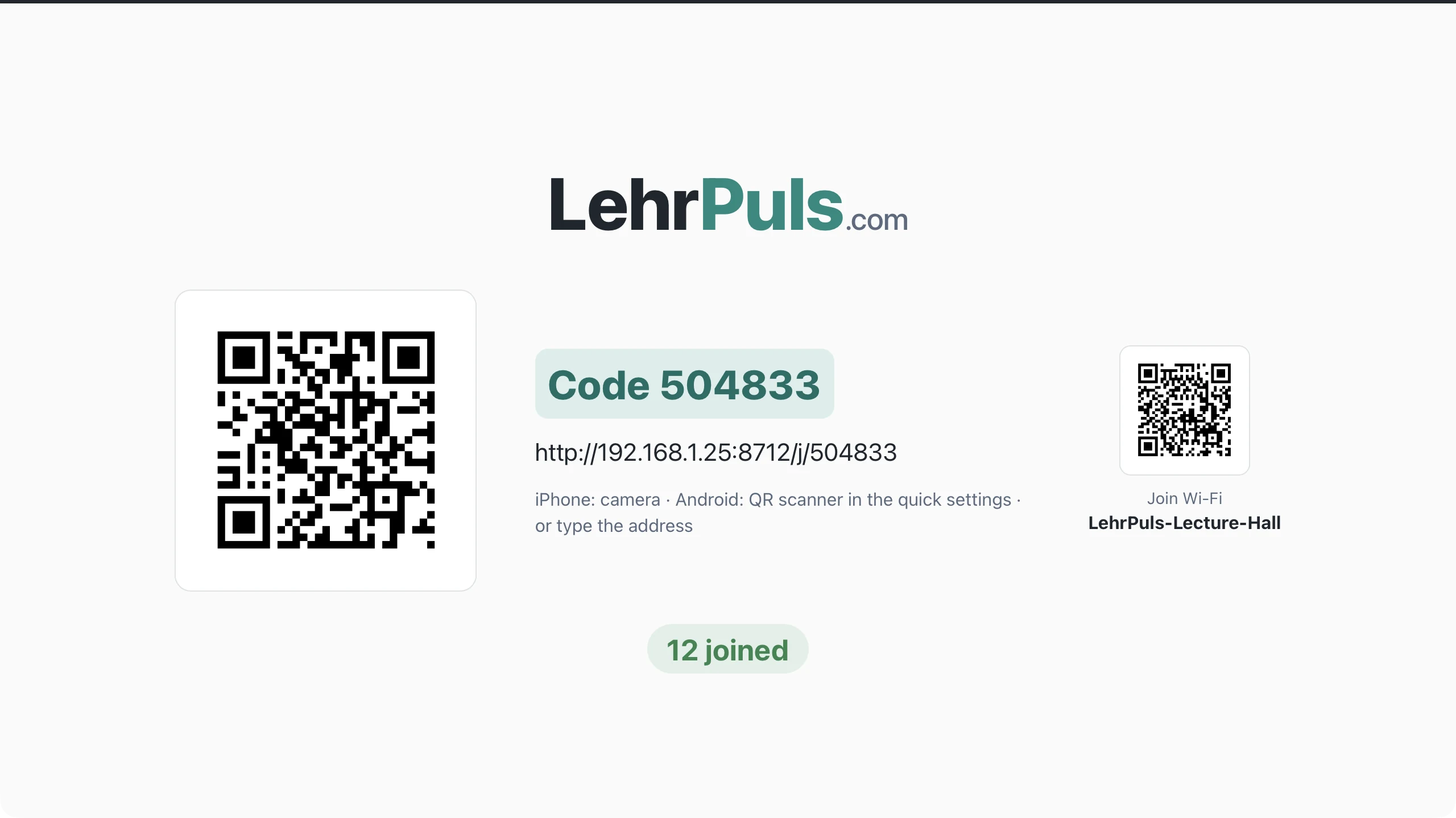

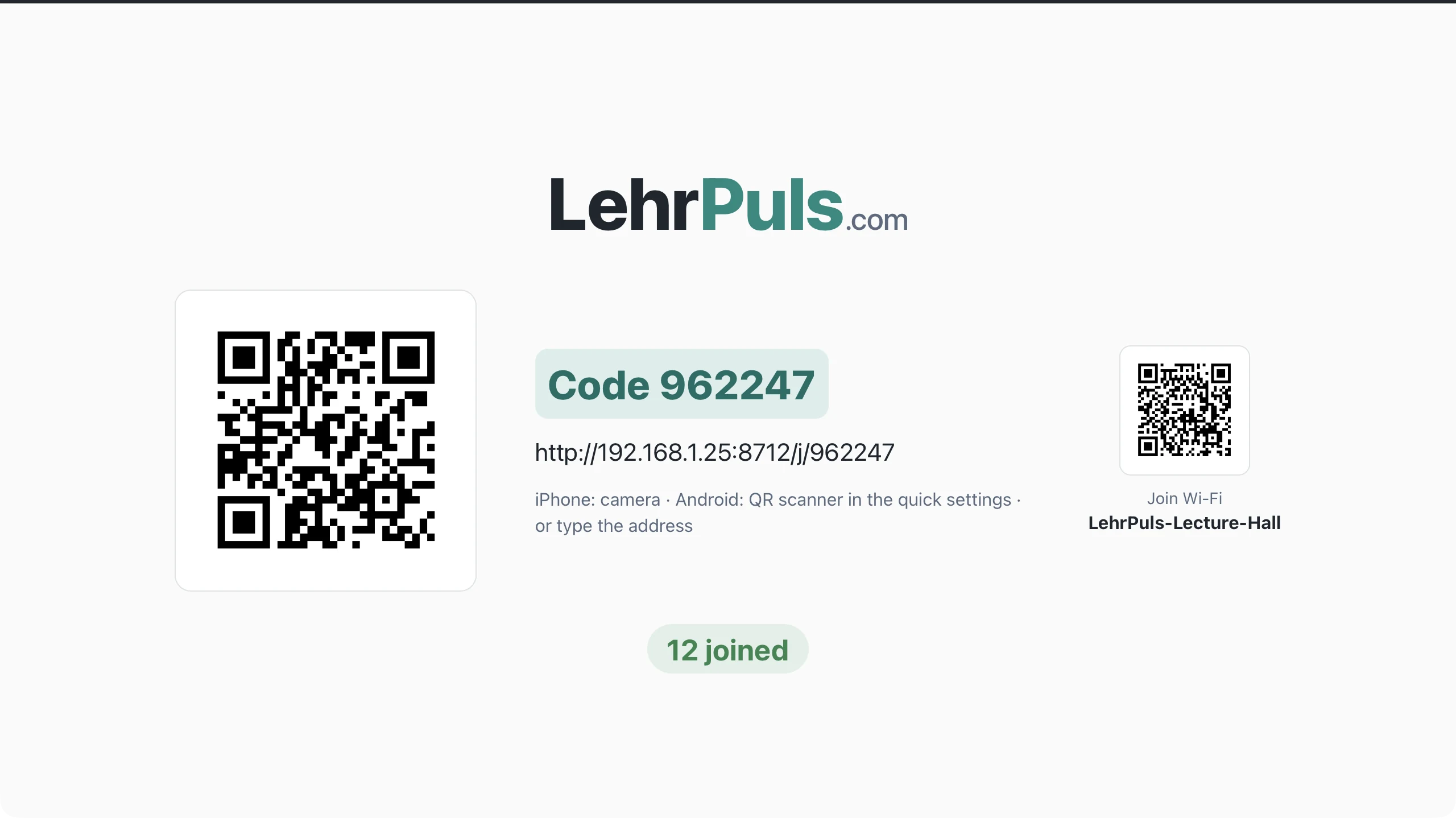

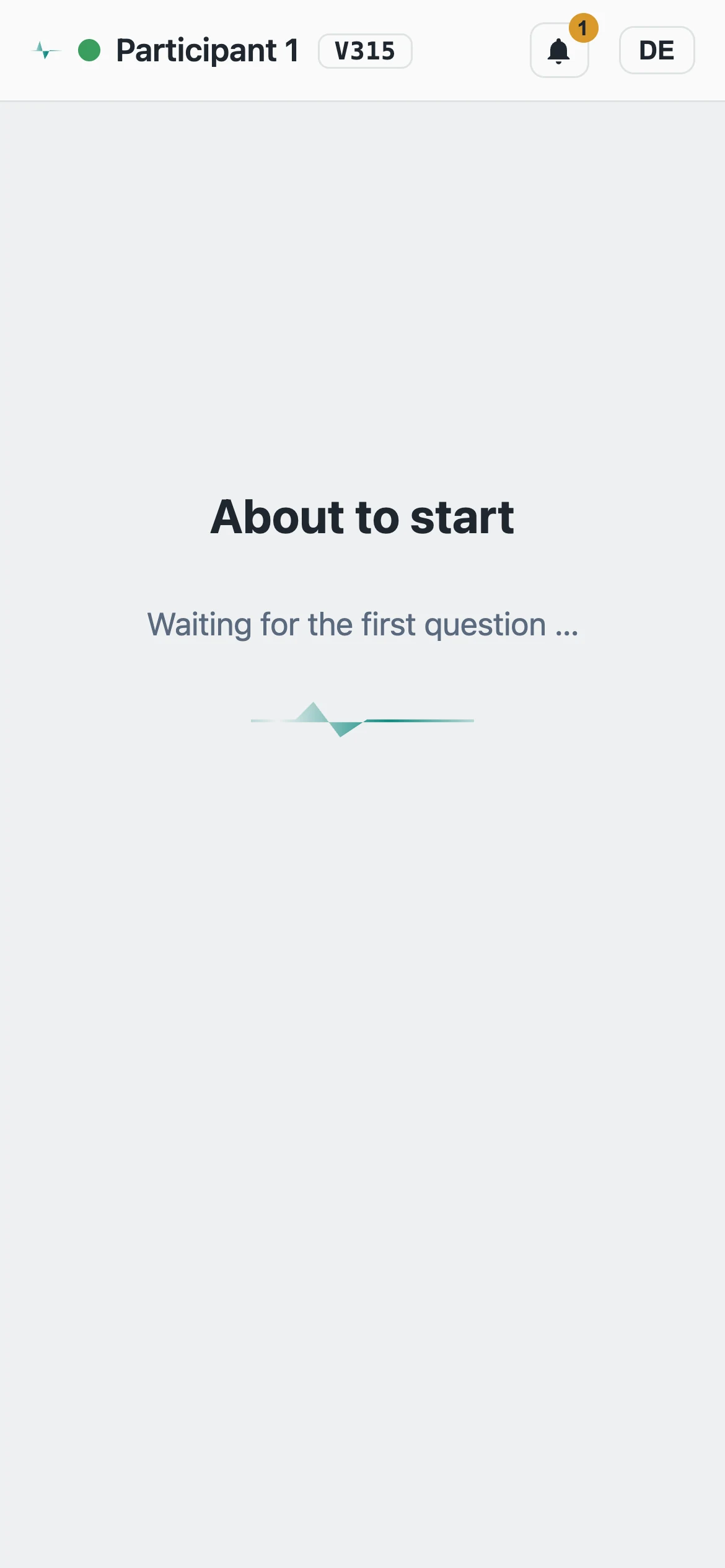

After the start, the projector shows the QR code and the address. Participants scan the code with their smartphone and they are in — no app, no account. How to start a session is shown in the guide Running a session.

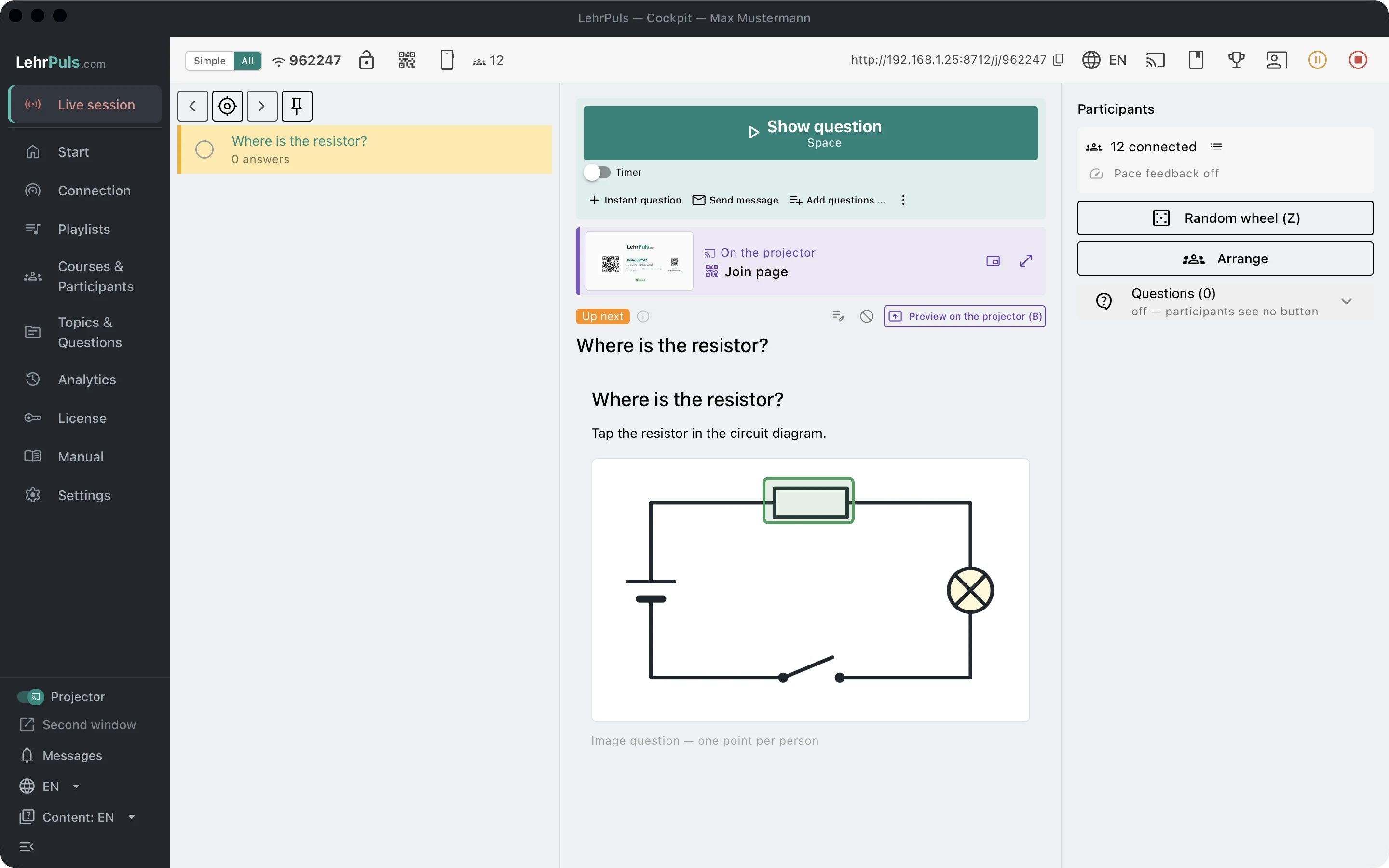

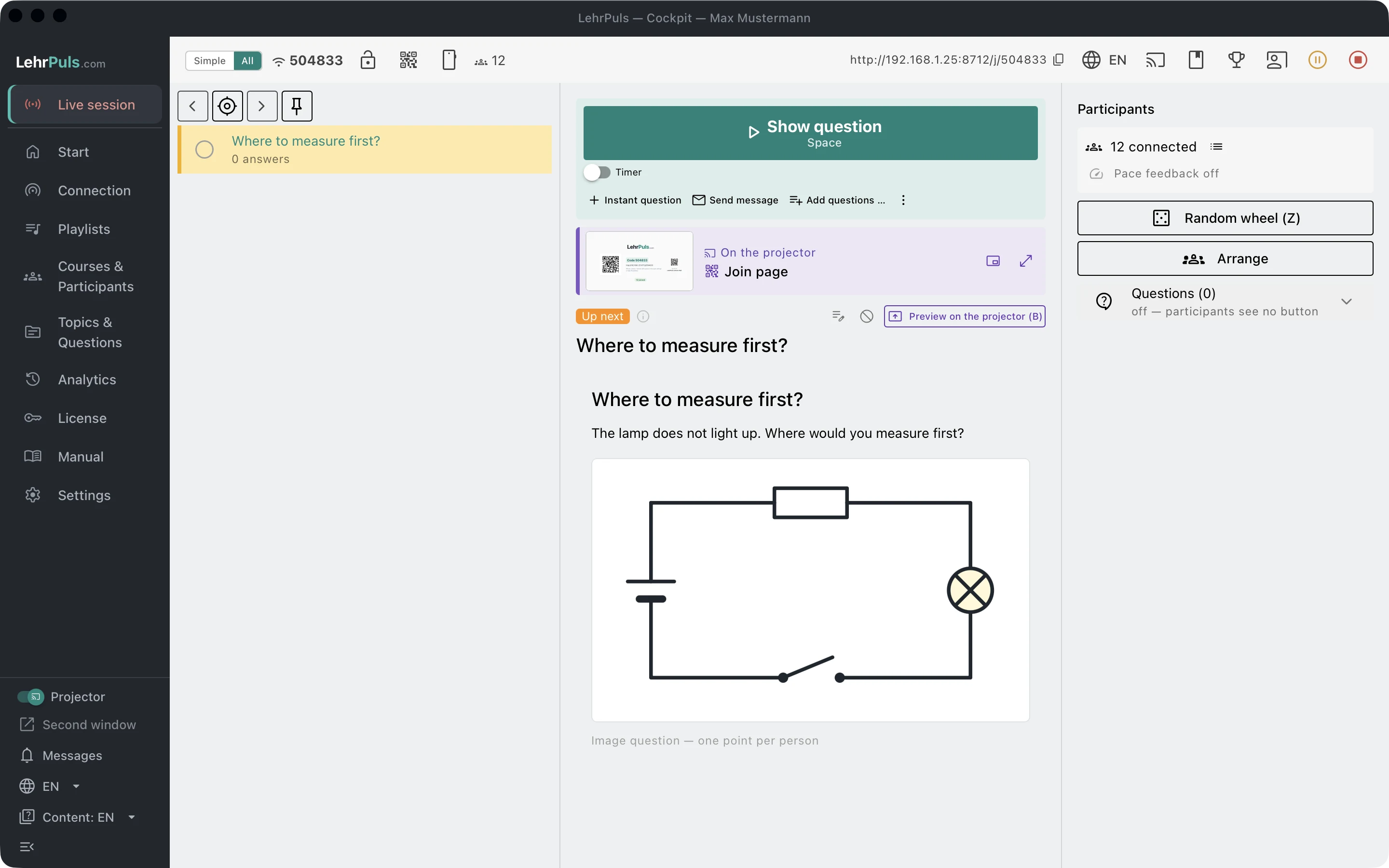

In the live cockpit the question is listed on the left. The large Show question button — or the space bar — opens it on all devices and shows it on the projector.

11Show question (space bar)22connected devices

1. Show question (space bar)
2. connected devices

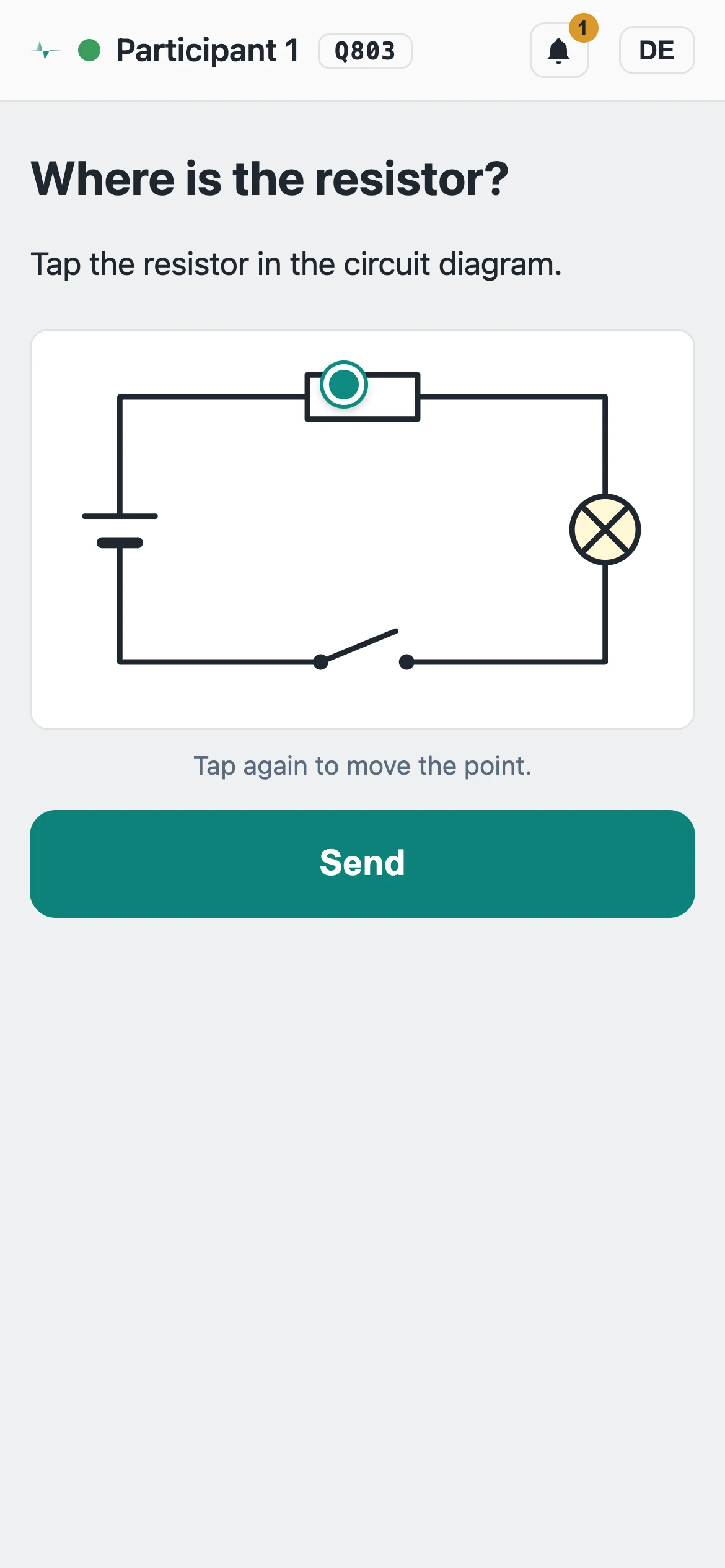

The image appears on the smartphone. A tap places the point, another tap moves it; Send submits it. As long as the question is open, the point can still be moved.

11Place a point22Send

1. Place a point
2. Send

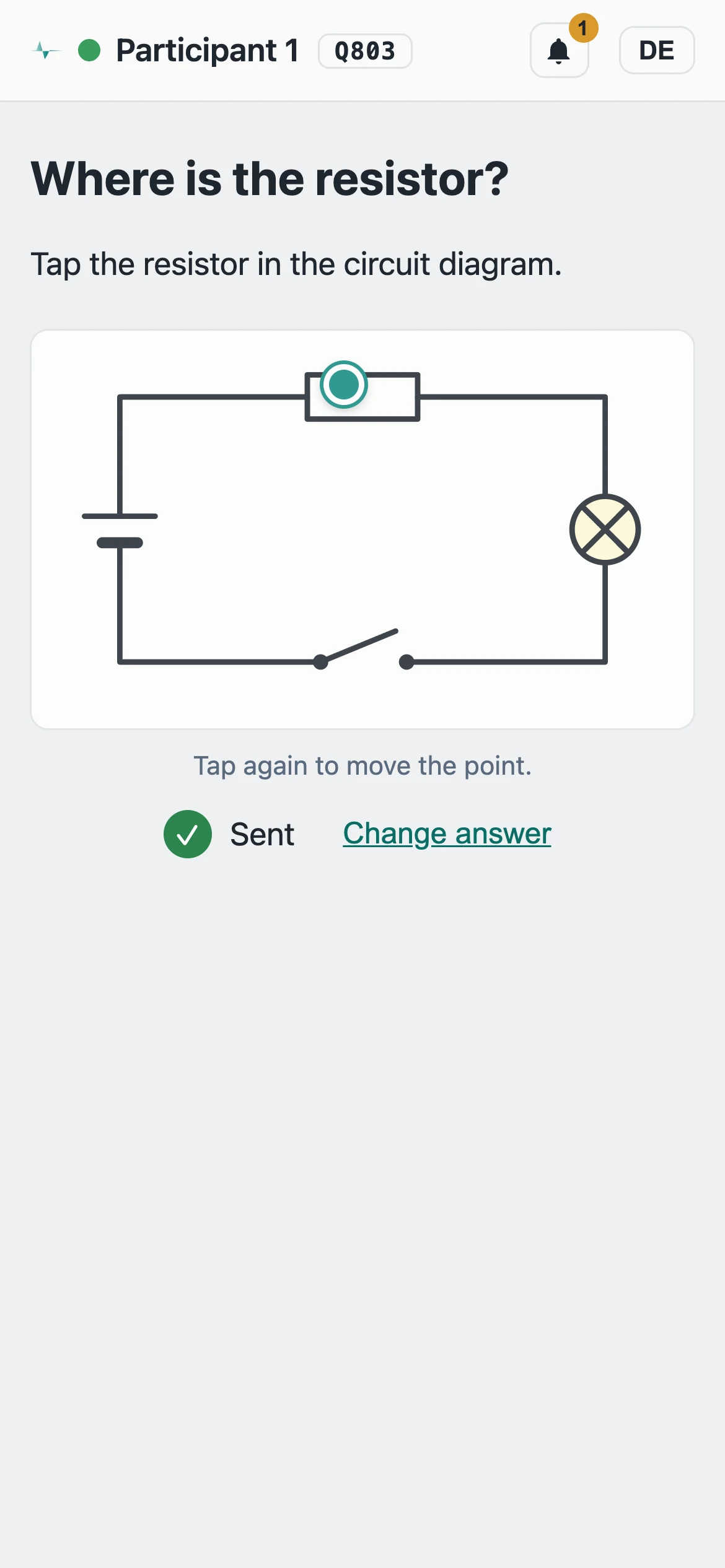

After sending, the smartphone confirms receipt. Until the question is closed, Change answer still allows corrections.

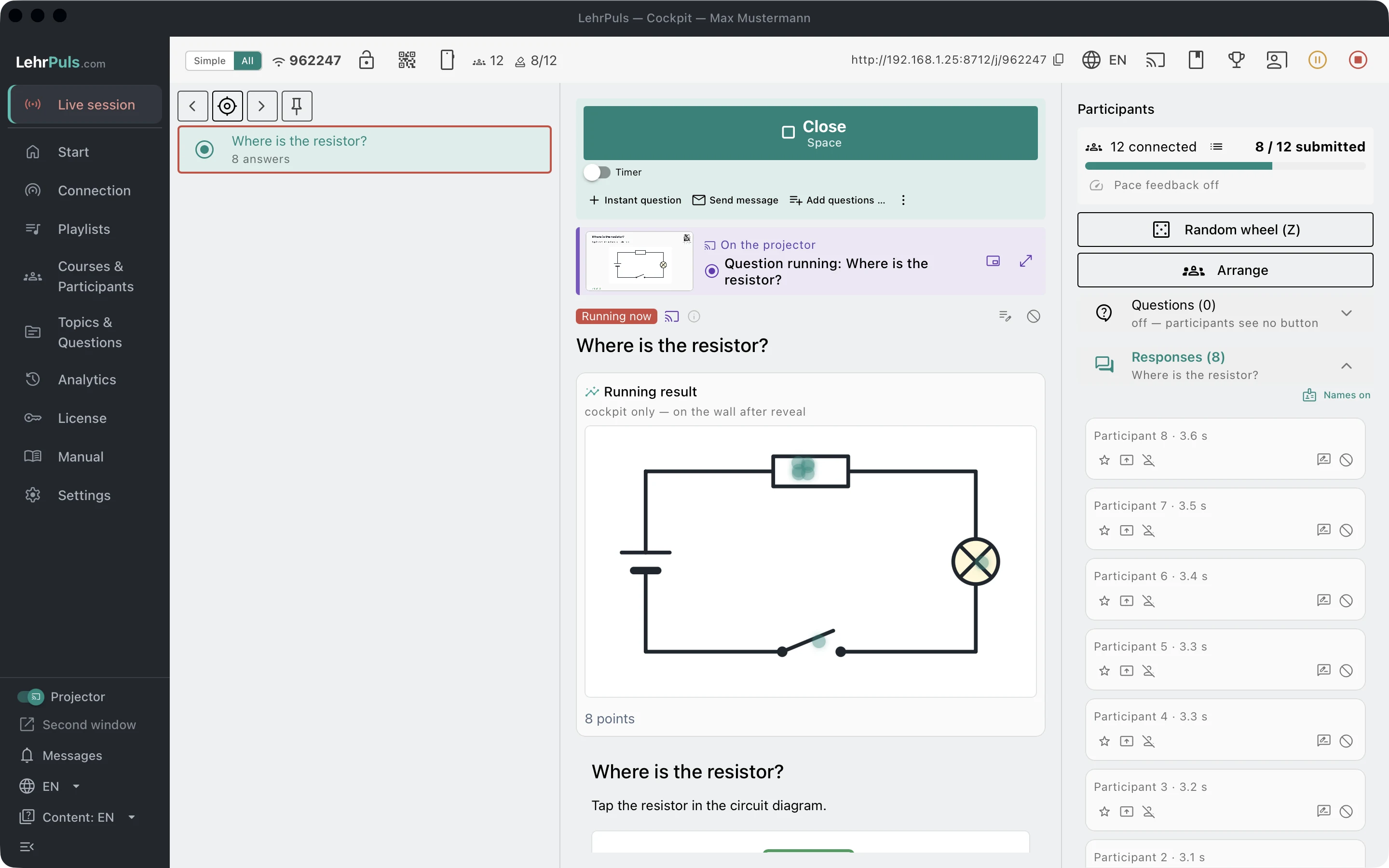

In the cockpit every point appears under Running result as soon as it arrives — still without target areas. Until the reveal the projector shows only the image, without points.

11Submissions so far22Close (space bar)33single answers

1. Submissions so far
2. Close (space bar)
3. single answers

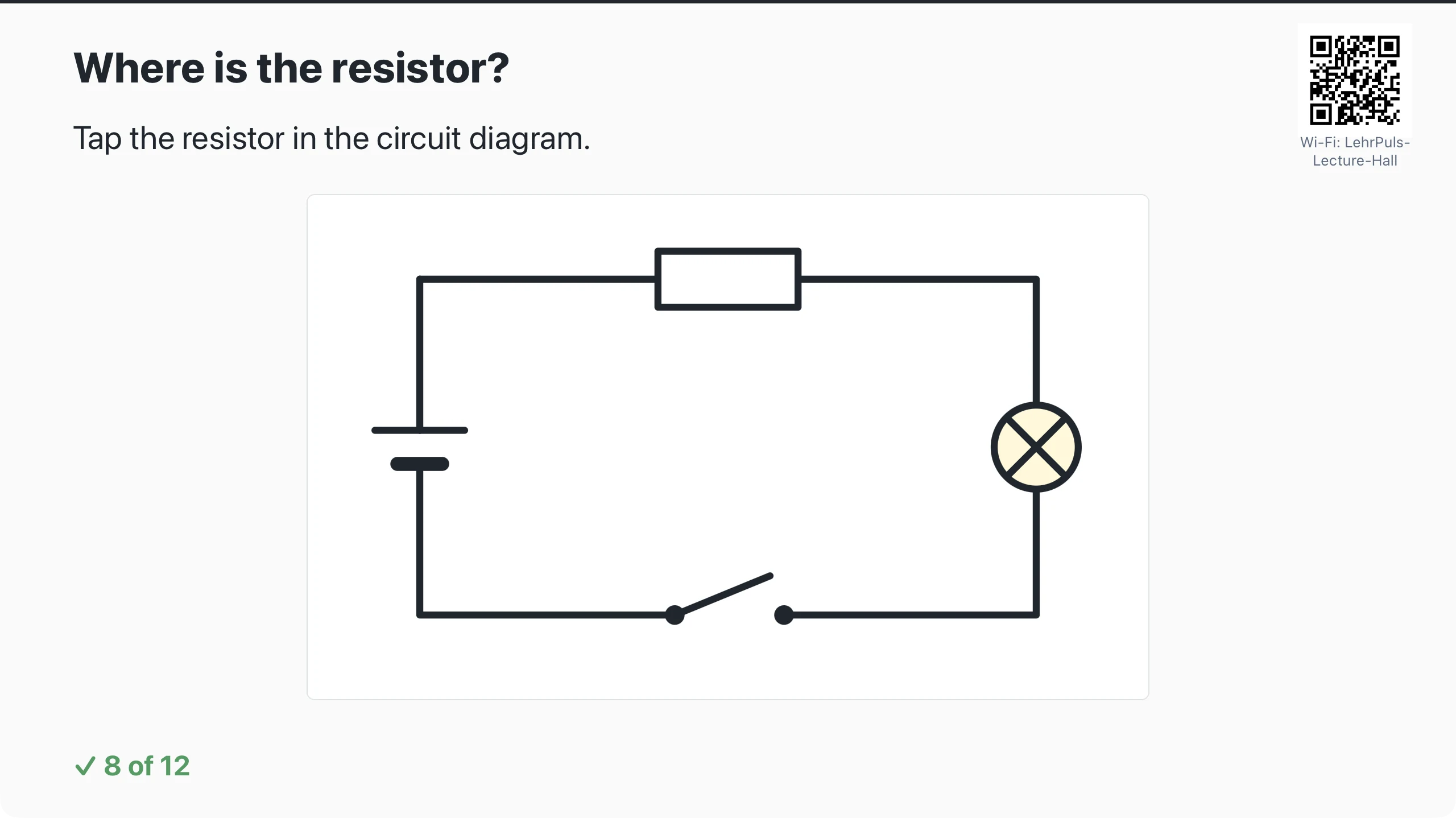

While answers are being collected, the projector shows only the image, as large as possible and without points.

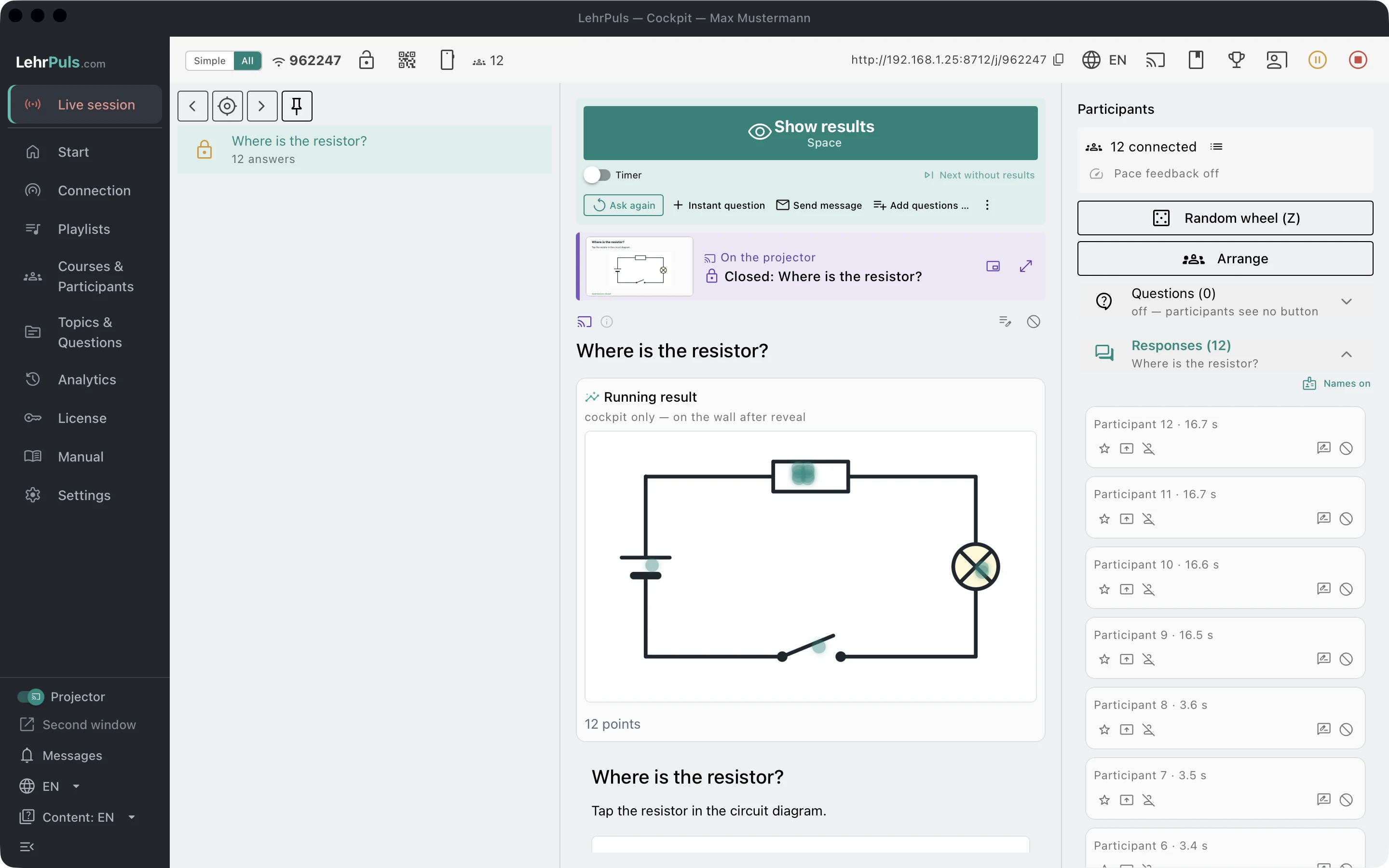

Close ends the submission; after that LehrPuls accepts no more answers. The main button now reads Show results — one more press of the space bar shows the result.

11Show results

1. Show results

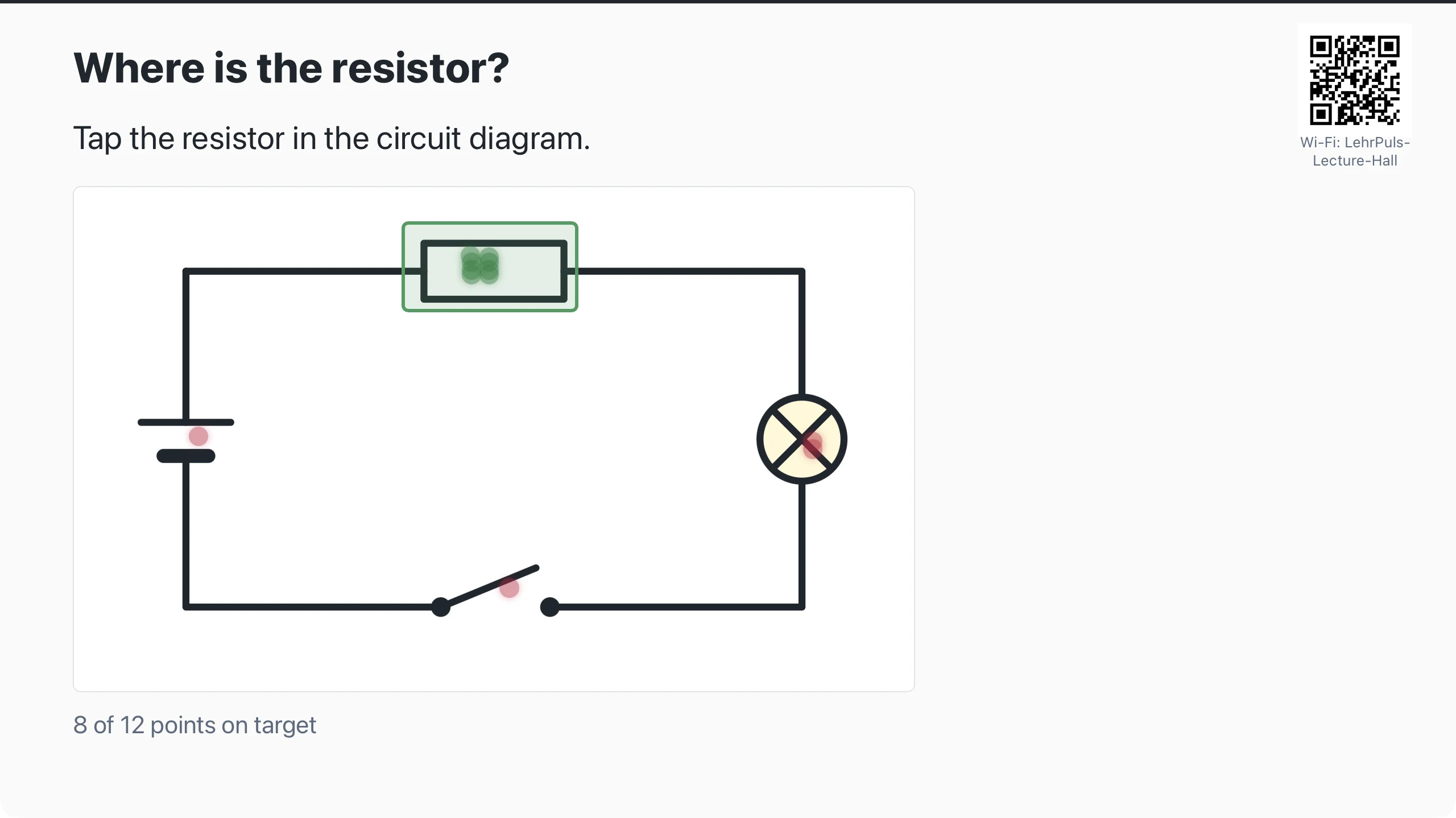

On reveal, all points appear on the image. The target area is outlined, points inside the target are green, points outside red; below it you see how many points lie inside the target.

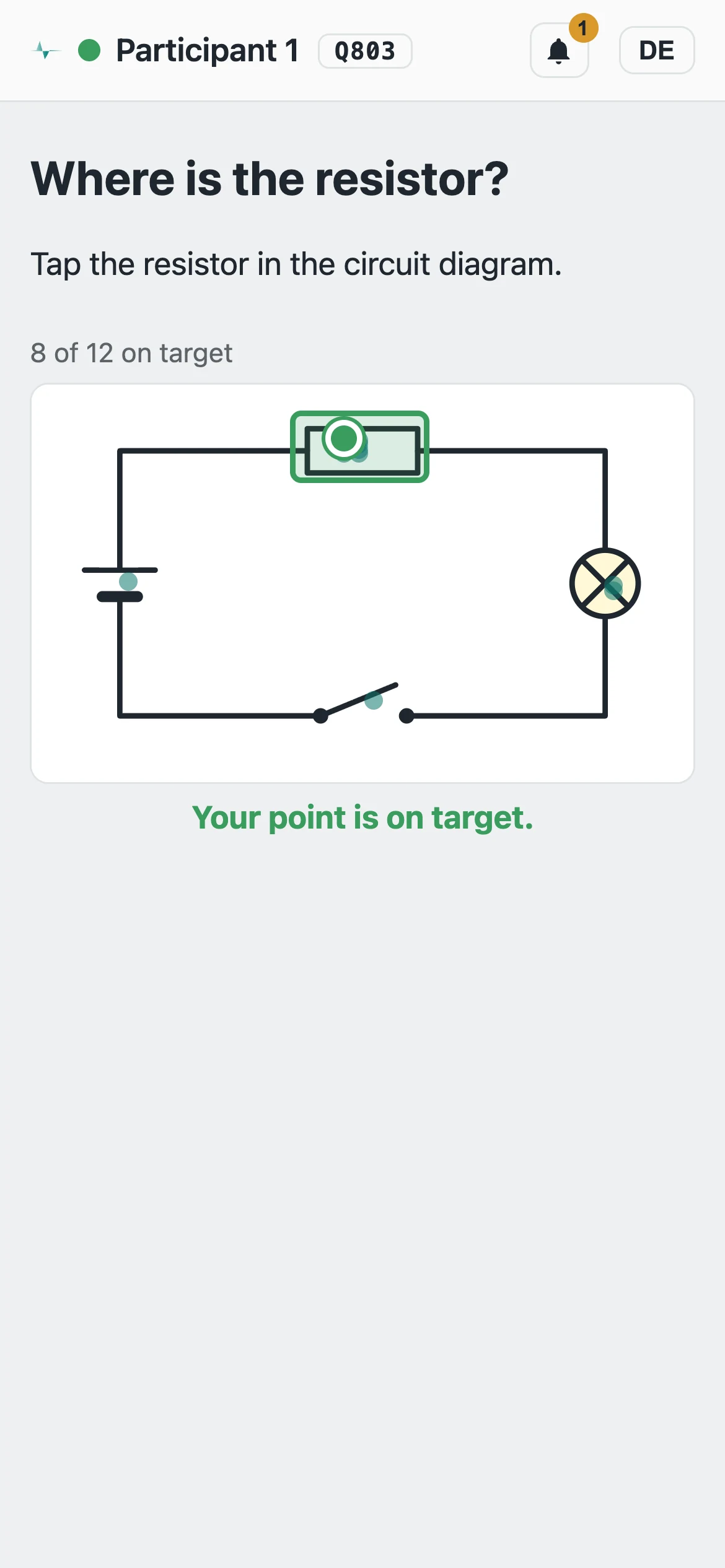

The smartphones show the same points and whether the own point hit the target.

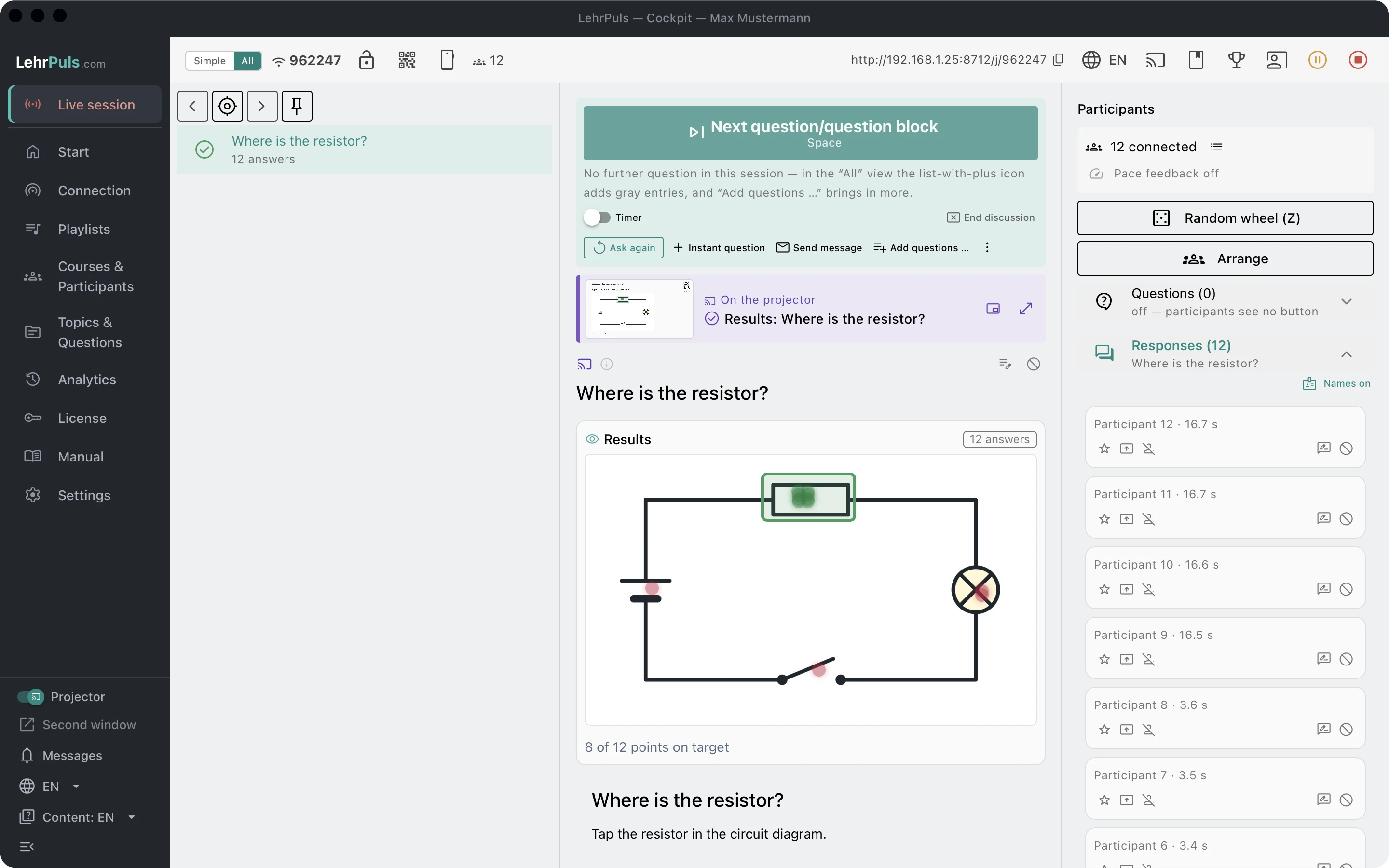

The cockpit shows the result as well. The space bar moves on to the next question; after the session everything is under Analytics.

Open Topics & Questions, select the topic on the left where the question belongs, and click + Question.

11Topics & Questions22Select topic33New question

1. Topics & Questions
2. Select topic
3. New question

The editor opens. Click the Question type field and choose Image question (place a point).

11Image question (place a point)

1. Image question (place a point)

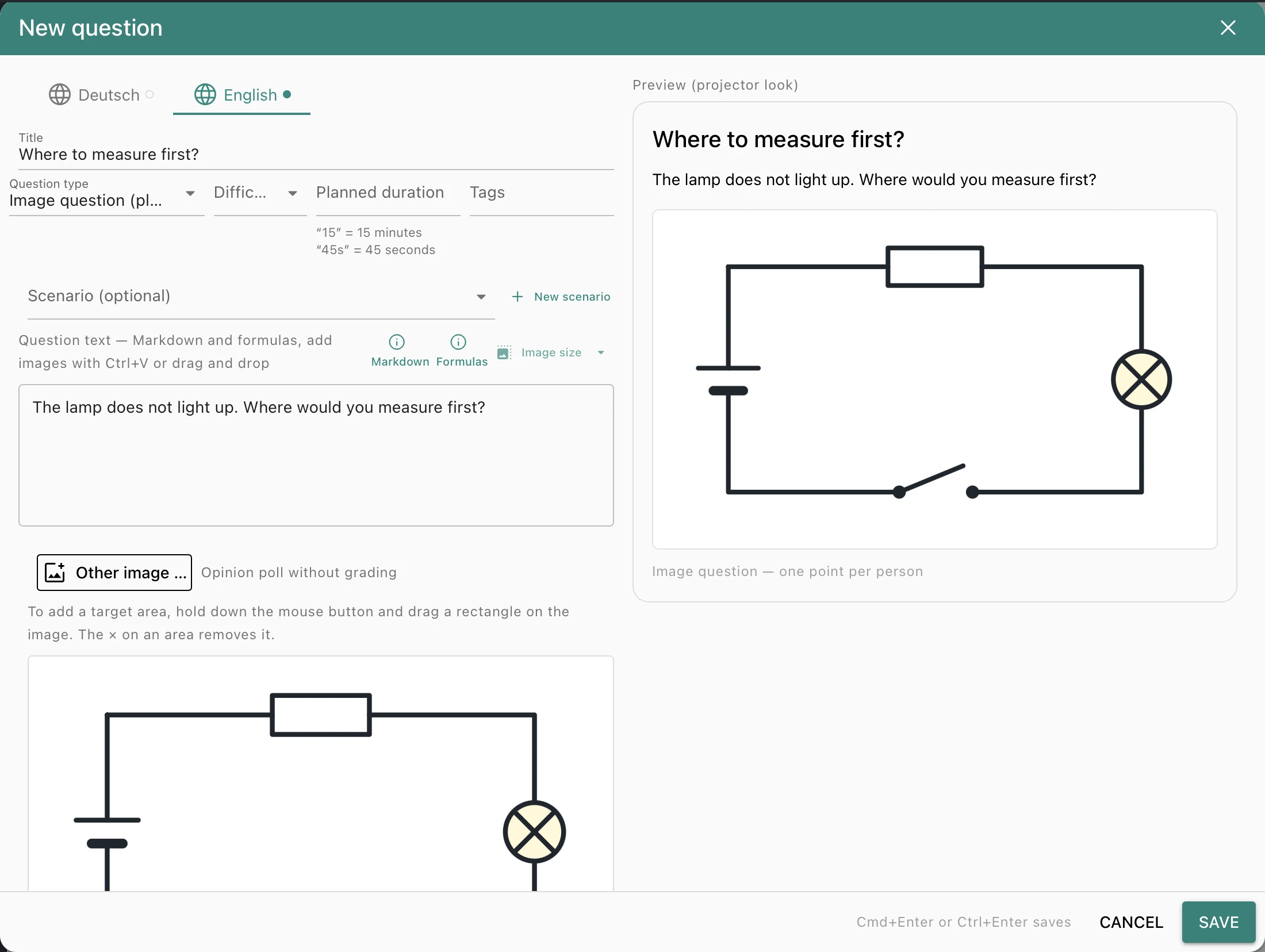

Choose the question type Image question (place a point) and load the image with Choose image … or drag the image file onto this area (PNG, JPEG, GIF, WebP or SVG). Do not drag a target area — above the image it then reads “Opinion poll without grading”.

11Title22Question text33without grading44Preview

1. Title
2. Question text
3. without grading
4. Preview

Click Save (or press Cmd+Enter or Ctrl+Enter). The question is now in the topic and can be added to any playlist.

11Save

1. Save

After the start, the projector shows the QR code and the address. Participants scan the code with their smartphone and they are in — no app, no account. How to start a session is shown in the guide Running a session.

In the live cockpit the question is listed on the left. The large Show question button — or the space bar — opens it on all devices and shows it on the projector.

11Show question (space bar)22connected devices

1. Show question (space bar)
2. connected devices

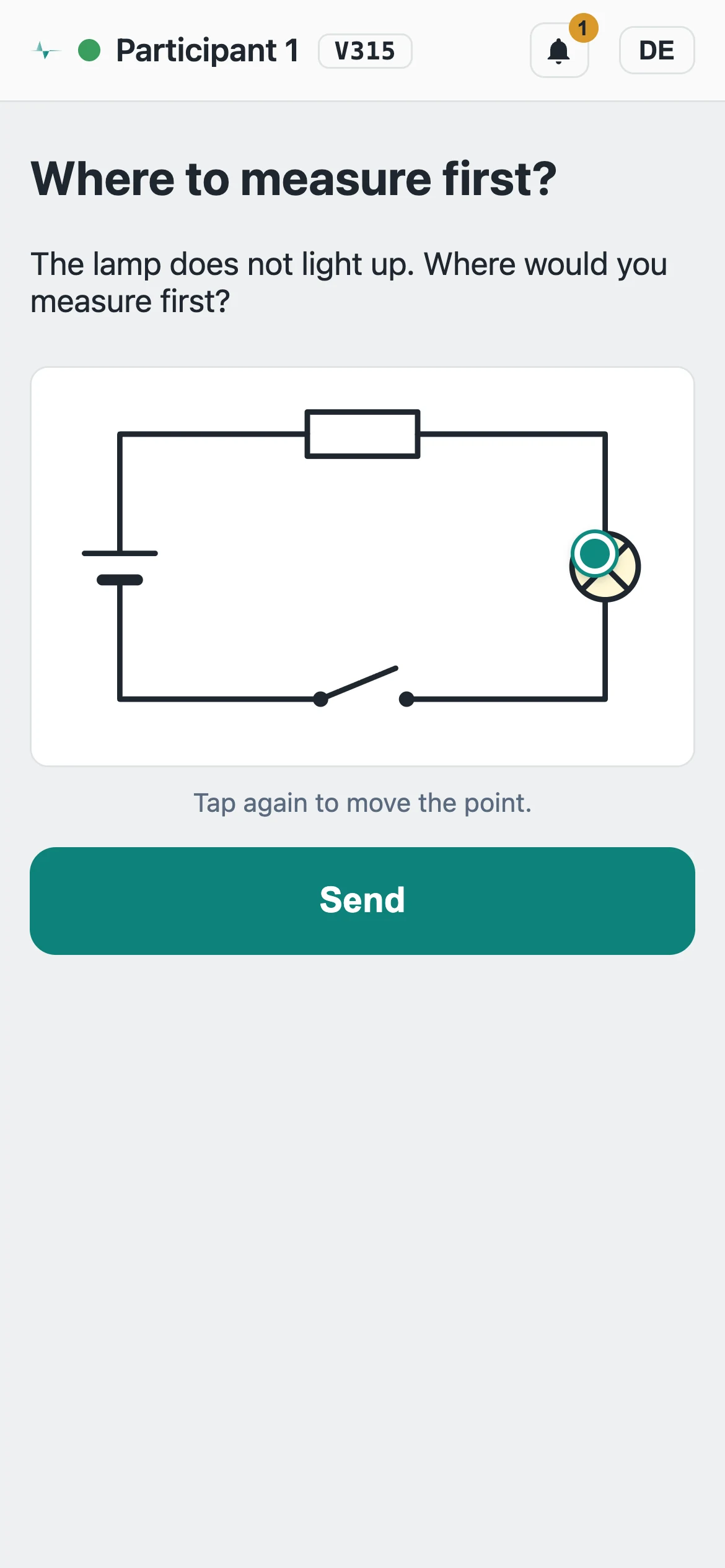

The image appears on the smartphone. A tap places the point, another tap moves it; Send submits it. As long as the question is open, the point can still be moved.

11Place a point22Send

1. Place a point
2. Send

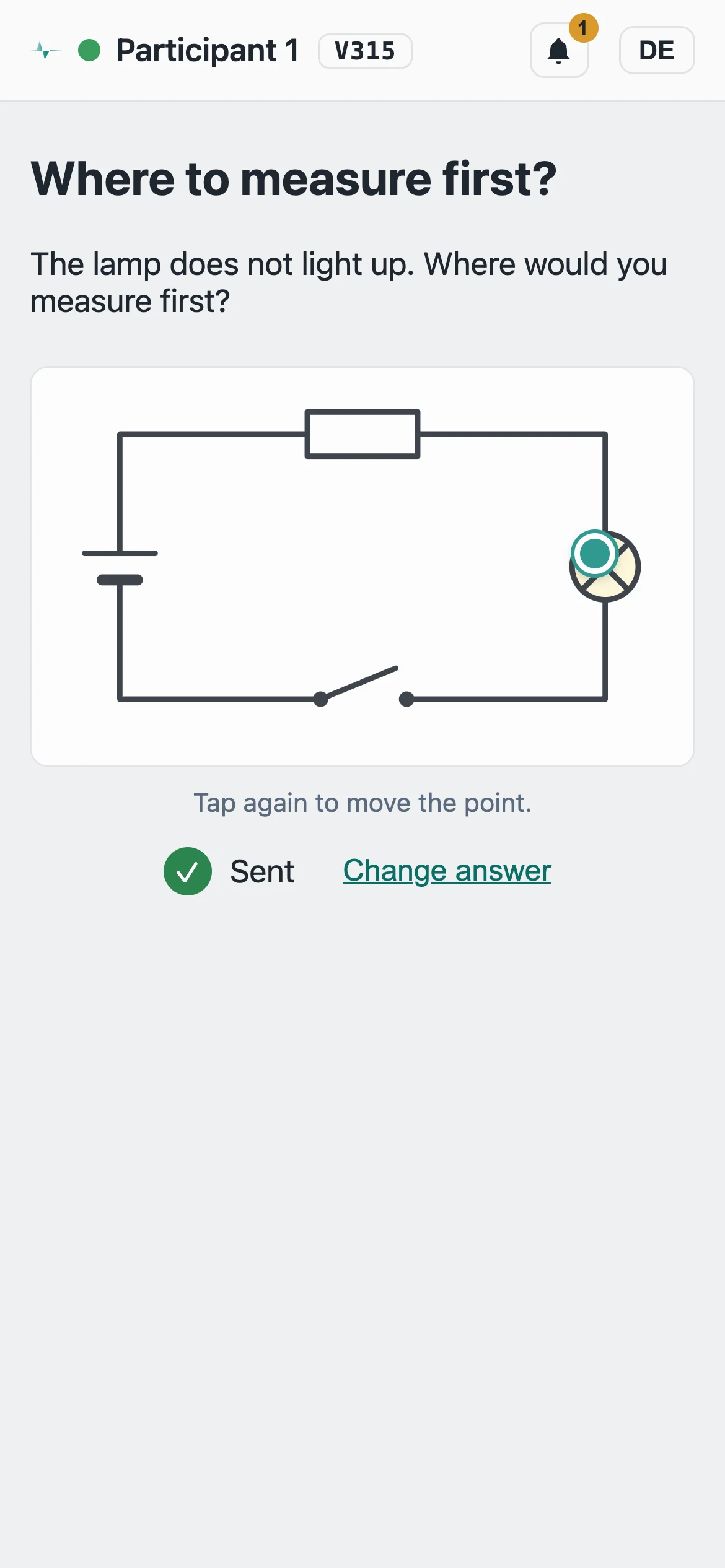

After sending, the smartphone confirms receipt. Until the question is closed, Change answer still allows corrections.

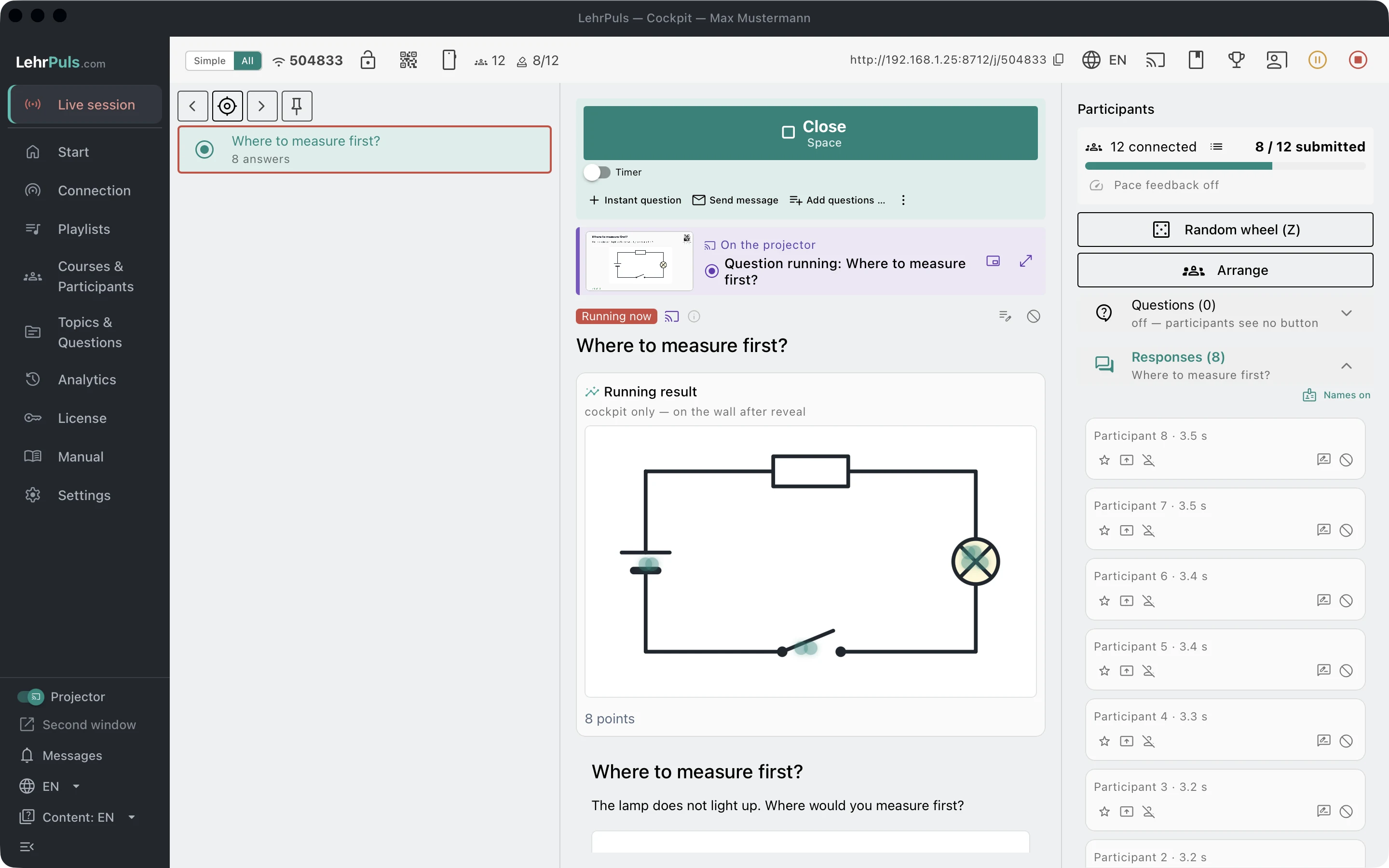

In the cockpit every point appears under Running result as soon as it arrives — still without target areas. Until the reveal the projector shows only the image, without points.

11Submissions so far22Close (space bar)33single answers

1. Submissions so far
2. Close (space bar)
3. single answers

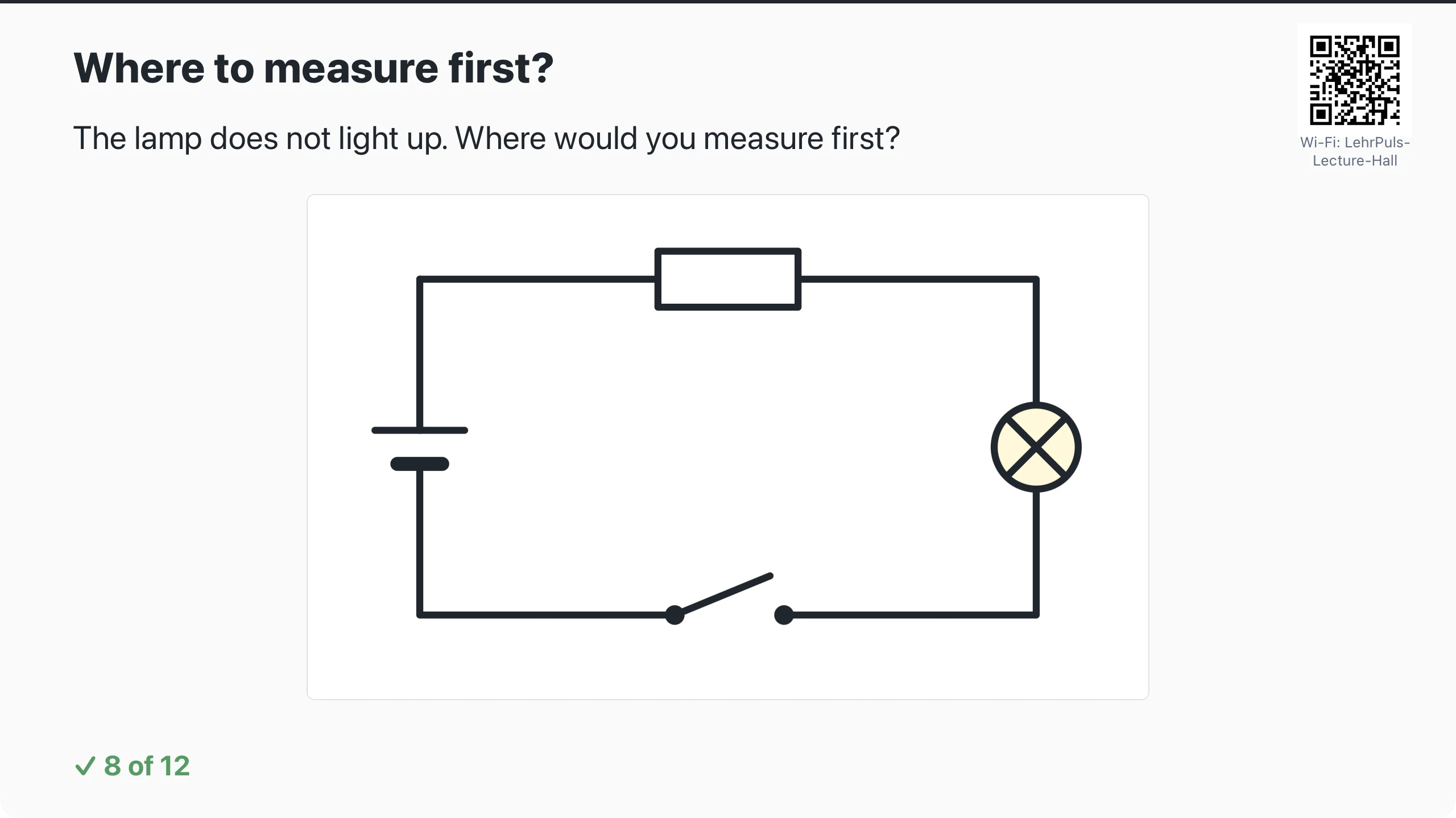

While answers are being collected, the projector shows only the image, as large as possible and without points.

Close ends the submission; after that LehrPuls accepts no more answers. The main button now reads Show results — one more press of the space bar shows the result.

11Show results

1. Show results

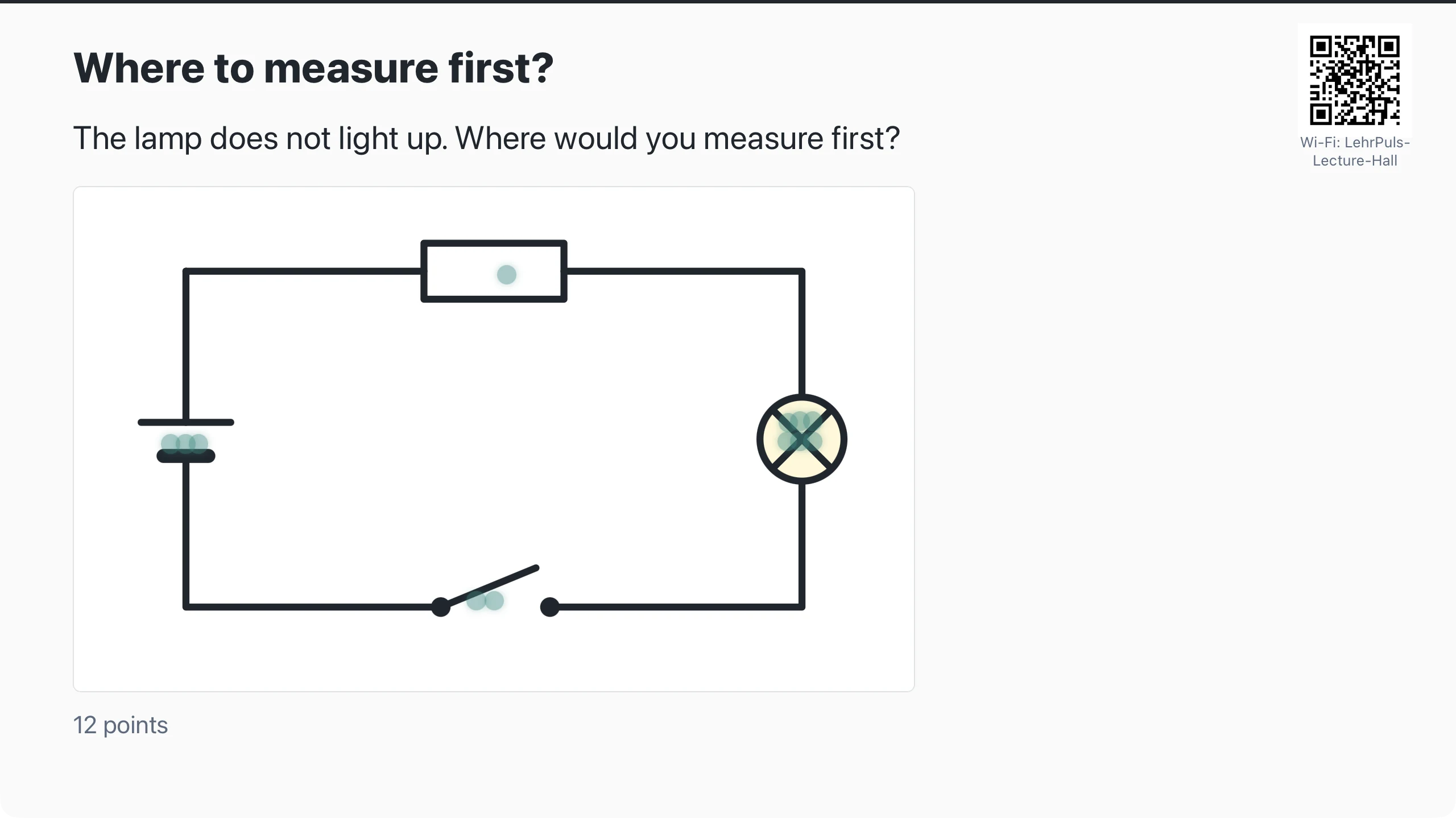

On reveal the projector shows all points semi-transparent — where many lie close together, a dark cluster forms.

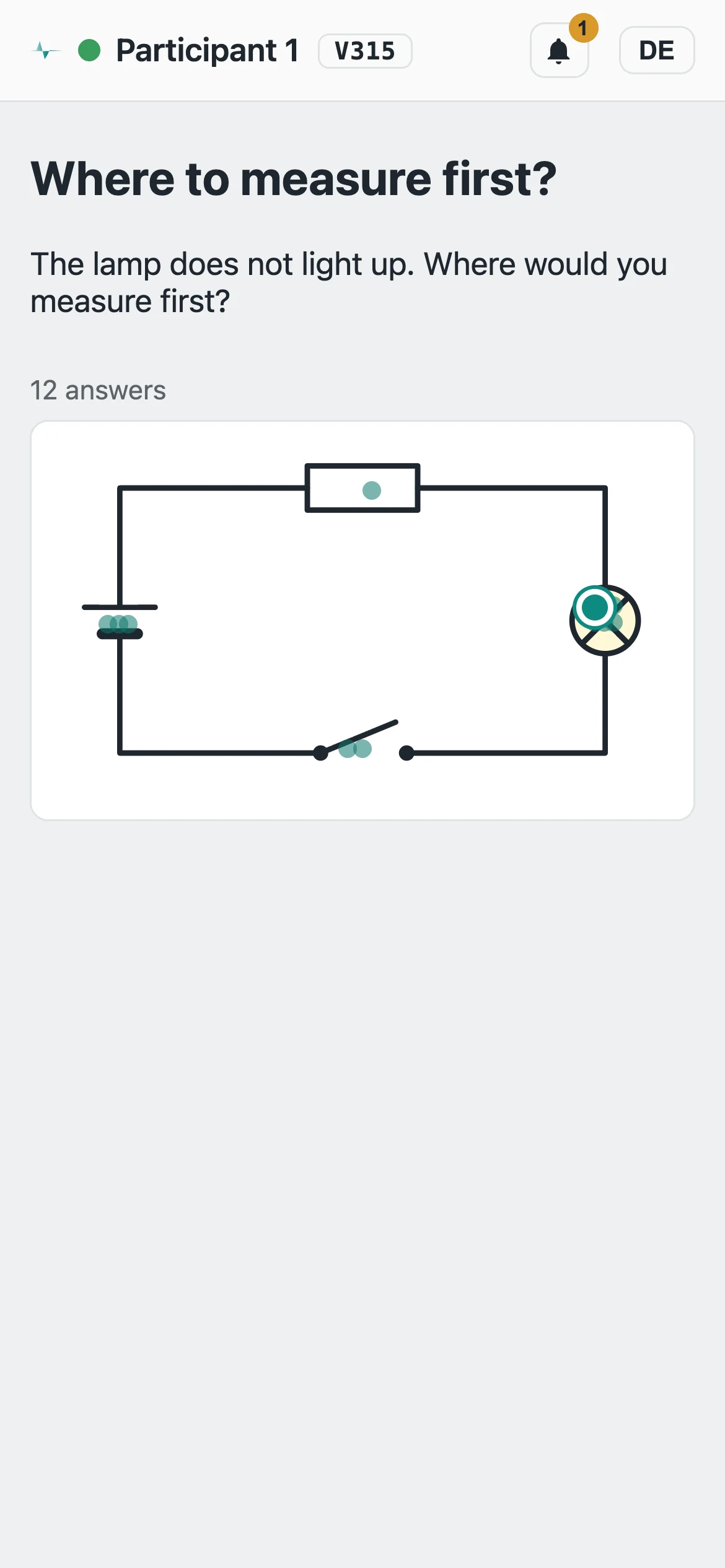

The smartphones show the same points, with the own point highlighted.

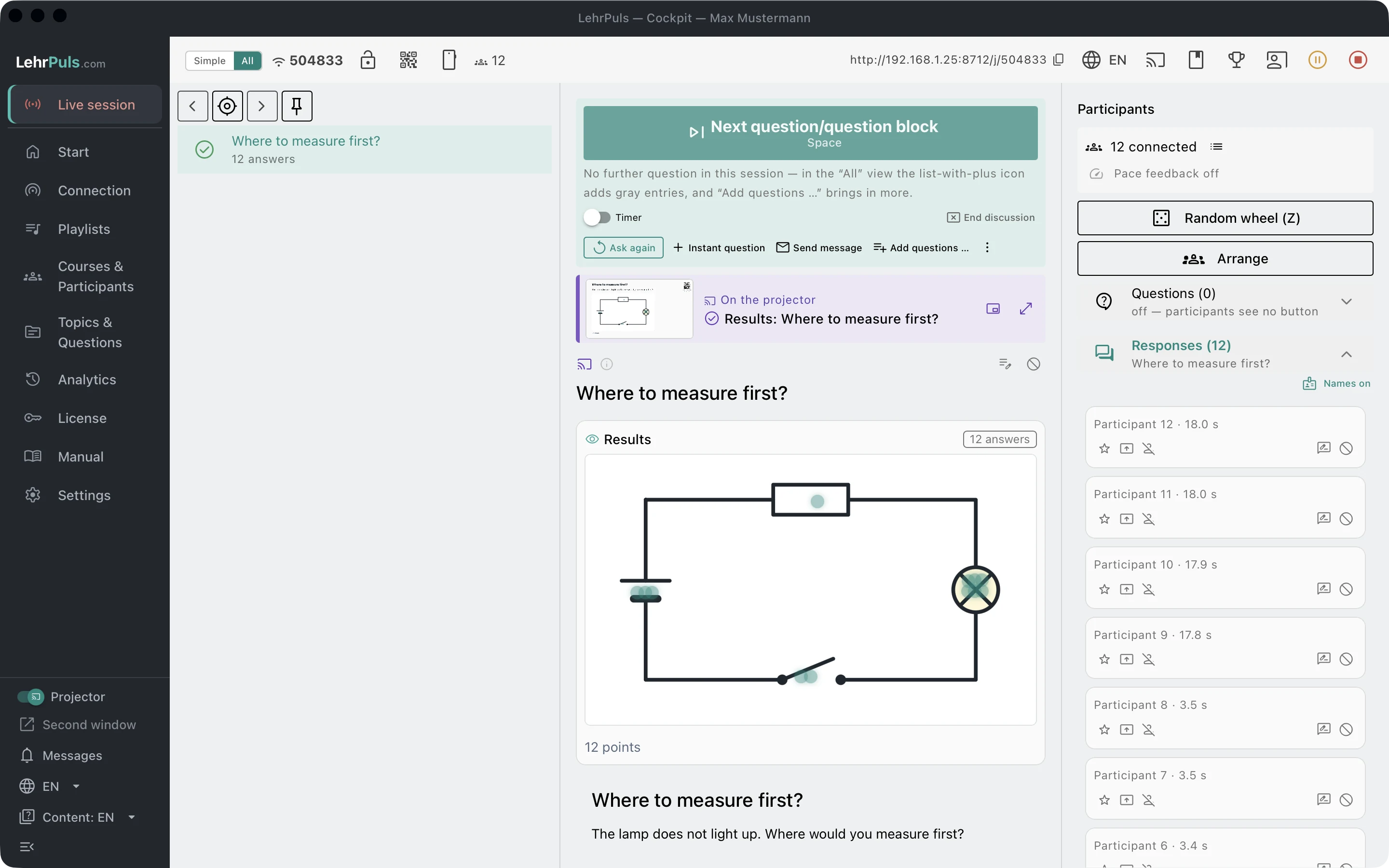

The cockpit shows the result as well. The space bar moves on to the next question; after the session everything is under Analytics.
